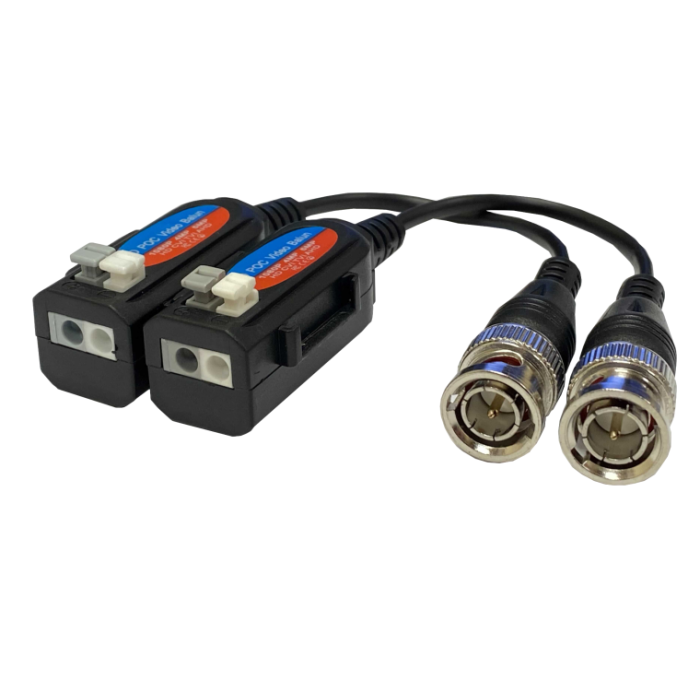

Vista VBALUN-4KPOC UTP Passive HD POC Balun x2 (Analogue)

SKU#: 0958160

Part No: VBALUN-4KPOC

In Stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

In Stock

About this product

Description

The Vista VBALUN-4KPOC video baluns are passive (non-amplified) devices allowing transmission of real-time CCTV analogue HD video formats including CVBS, TVI, CVI and AHD up to 4K resolutions over Unshielded Twisted Pair (UTP) cabling. In addition, Power Over Coax (POC) cameras and DVRs are supported over the baluns to provide a cost-effective UTP cable solution and alternative to Coax. Superior interference rejection and low emissions allows CCTV video signals to coexist in the same cable bundle as telephone and datacoms services for the use of shared or existing cable plant and investment. Built-in surge suppression also protects equipment against damaging voltage spikes.

CVBS, TVI, CVI and AHD support up to 4K resolutions
Power Over Coax (POC) camera and DVR compatible – max 10Watt
Surge Protection to 2KV (common mode), IEC61000-4-5
Retains investment in UTP infrastructure without the need for dedicated coax cabling
