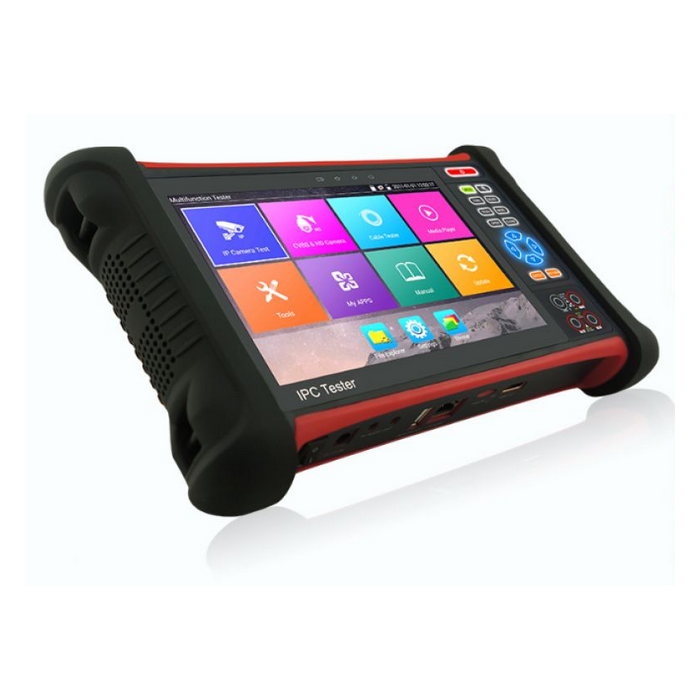

Vista DIAMOND4KV2 Multi-Faceted CCTV Test Monitor with 4K Camera Support
SKU
0946300
Part No:
DIAMOND4KV2
In Stock
Key features of Vista DIAMOND4KV2 CCTV Test Monitor:
- 7” Retina touchscreen - Display resolution 1920x1200
- Multi-format video input - IP, CVBS, TVI, CVI and AHD cameras
- PTZ testing - Outputs to RS485 or HD analogue up the coax protocols to test
most PTZ domes - Long battery life - Approx 16-hour battery life after an 8hour charge
- UTP CAT5e tester - Supplied with UTP cable testing wand to identify straight, crossed, and faulty CAT5e cable termination
- Cable tone tracer - For cable location\identification
- Digital Multi-Meter - ideal testing, fault finding, and commissioning in one handy robust unit
- Power output - Provides 12VDC and PoE power output to power cameras locally for testing\commisioning
- HDMI Input - Can be used as a setup screen for DVRs and NVRs, supports up to 4K input
The DIAMOND4Kv2 test monitor receives an additional enhancement with the latest upgrade, receiving a slimmer and more ergonomically designed rugged case. It still remains the ultimate analogue and IP test tool of choice. Crammed with functions developed to make the job of installing, commissioning and fault finding of CCTV systems easier, this ergonomically designed touch screen monitor is a must have for any installation engineer. As a basic test monitor, DIAMOND4Kv2 will accept virtually any CCTV camera format including IP, CVBS, TVI, AHD and CVI video, up to a maximum resolution of 4K on both IP and High definition analogue formats. Both RS485 and UTC protocols for TVI, AHD & CVI PTZ cameras can be tested directly from the unit.
- In-built VK2-Remote IP camera APP
- ONVIF camera discovery and tester
- IP address discovery tool
- Manufacturer-specific camera activation apps and viewers
- RTSP viewer
- Screen snapshot
- HDMI Input and output to 4K
- Multi-meter
- Wi-fi tester
Other Documents
Product Datasheet
| Stock | In Stock |
|---|---|
| Part Number | DIAMOND4KV2 |
| Ancillary Options | Test Equipment |
| Technology | Hybrid |
| Brand | Vista |
| Category | Peripherals, Ancillaries, Monitors |
