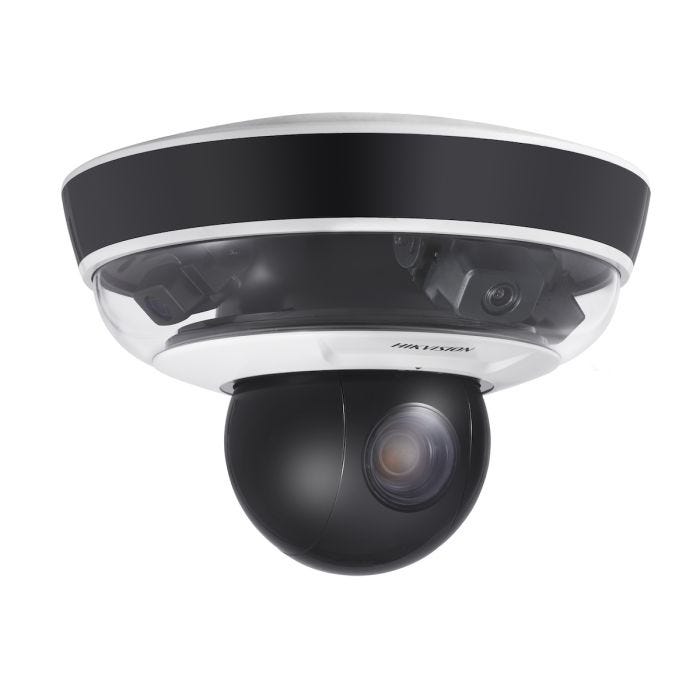

The HikVision DS-2PT5326IZ-DE (5-50 mm)(4 mm) is able to capture 240° images with the panoramic cameras, as well as close-up images with the PTZ camera.
HikVision DS-2PT5326IZ-DE (5-50 mm)(4 mm) Key Features
System Functions
- 3-ch panoramic images in different directions and 1-ch close-up image
- Three flexible cameras are adjustable along a circular track, slide range: 0°to 270°
- Three flexible cameras can tilt rotate from 15°to 55° independently
- 1-ch audio input and 1-ch audio output
- 1-ch alarm input and 1-ch alarm output, support alarm linkage
- PTZ linkage
- Built-in memory card slot, support microSD/SDHC/SDXC, up to 256 GB
- Open-ended API, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
- Support H.265 video compression
- IP66
Panoramic Camera
- Three 1/2.8" progressive scan CMOS
- UP to 3-ch 1920 × 1080@30fps resolution
- Min. illumination: Colour: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
- Horizontal FOV: 80.7°× 3 Vertical FOV: 43.5°
- Up to 30 m IR radius
PTZ Camera
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination: Colour: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 Lux with IR
- 10× optical zoom, 8× digital zoom
- Up to 50 m IR distance
