Dantech Steel Cased 4x 1A 12VDC power supply with integrated UPS
SKU#:
0057130
Part No:
DA396
In Stock
In Stock
About this product

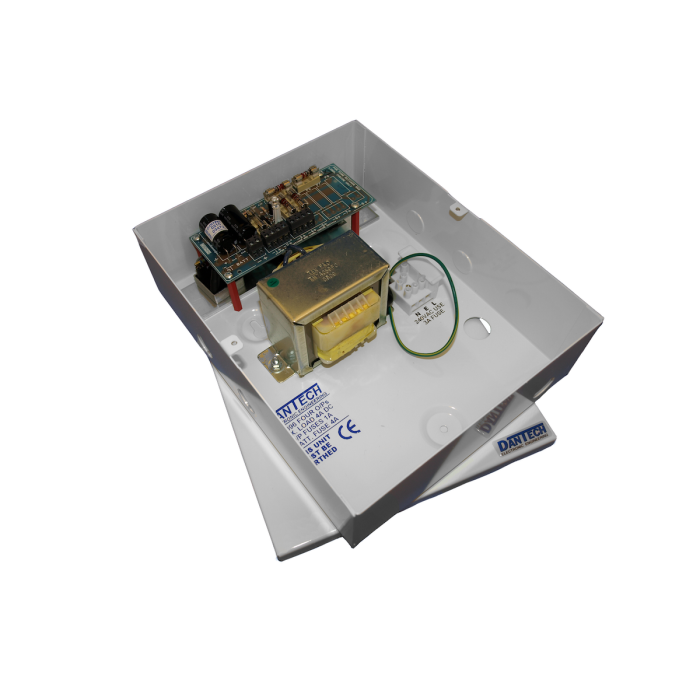

DA396: Steel-cased 4x 1A 12VDC power supply with integrated UPS
This simple range of multi-purpose metal-cased power supplies provides 4A of 13.7VDC via individually fused outputs, for 12VDC equipment. The enclosure can also house a 7Ah VRLA battery, which the power supply will automatically charge while mains power is present and use in the event of mains power loss.
4x 1A individually fused outputs
Each of the outputs can provide 12V 1A DC continuously and is protected with a quick-blow 1A glass fuse.
Integrated UPS battery back-up
A 7Ah VRLA battery can be placed in the mild steel enclosure and connected to the battery terminals of the PCB. This power supply will automatically float-charge the battery to capacity as required and provide continuous, uninterrupted power to the output from the battery if mains power is unavailable. Batteries are not included. This unit can be used with or without batteries fitted.
Mild steel powder-coated enclosures
Manufactured from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall-mounting. The enclosure includes 'knock-outs' for cable gland entries, e.g. for mains power.
Includes a spares bag mounting kit
Each unit includes a spares bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.
Input 230VAC @ 50Hz (+/- 10%)
Designed to operate on UK standard mains power, this unit accepts 230VAC @ 50Hz (+/- 10%)
- Four 1A individually fused outputs
- Integrated UPS battery back-up support
- Mild steel powder coated enclosures
- Includes a spares bag mounting kit
- Input 230VAC @ 50Hz (+/- 10%)
Product Datasheet
| Stock | In Stock |
|---|---|
| Part Number | DA396 |
| PSUs | 12VDC, Boxed, Battery Back Up Facility, UPS |
| Brand | Dantech Electronic Engineering |
| Category | Power & Connectivity, PSUs |
