Videx Standalone Touch to Exit Button (Flush)
SKU#:
0823540
Part No:
DINMTTS-EXIT
Order on Request
Order on Request
About this product

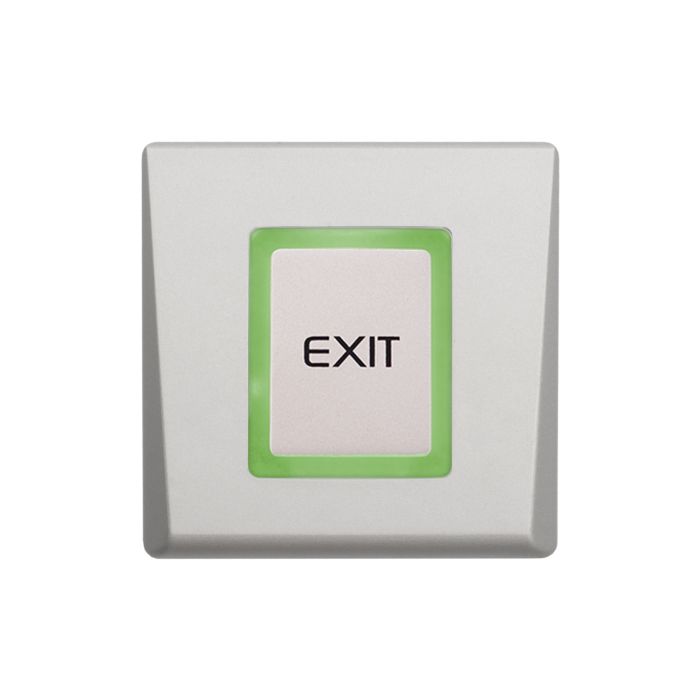

The DINMTTS-EXIT is a flush mount touch to exit button with a touch sensitive plate and halo illumination to indicate the status of the device (open = green or closed = red). It can be powered by 12-24VAC or VDC power input and incorporates a dry contact relay output which can be programmed for 3, 5, 10 seconds or to latch mode. With a DINFPS flush front frame it can be used with an access control system (Portal Plus) or wired directly to a lock as a standalone exit device.
- Touch sensitive request to exit button.
- DINFPS single gang flush front plate.
- Audible and visual feedback.
- Programmable relay time or latching mode.
- 12 - 24VAC or VDC operating voltage.
- Low current consumption (65mA max.)
Product Datasheet
| Stock | Order on Request |
|---|---|
| Part Number | DINMTTS-EXIT |
| Brand | Videx |
| Category | Access, RTE Reset Break Glass Units and Call Points |
