Acre SPCE651.100 Expander with 8 Anaylsed Inputs and 2 Outputs

SKU#: 0144910

Part No: SPCE651.100

Order on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Interfaces: X-BUS (in, out, branch)
Tamper contact: Front spring tamper
Weight: 0.350 kg
Operating voltage: 9.5 ~ 14 VDC
Operating temperature: -10 ~ +50 Â°C
Housing: Plastic housing (ABS)

Order on Request

About this product

Description

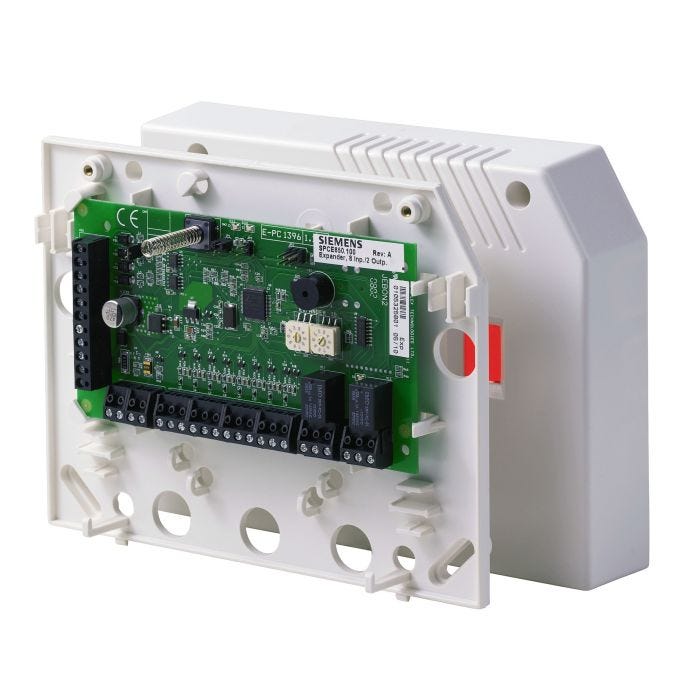

The SPCE651.100 expander extends the SPC system via X-BUS with 8 analysed zones and 2 fully programmable relay outputs. Analysed zones allow to connect inertia sensors. The zones and outputs on the expander function exactly as the zones and outputs on the SPC panel. Each zone can be configured for different zone monitoring requirements. The outputs are volt free relays that provide both NO and NC terminals allowing the greatest flexibility. The expander comes in a plastic housing with front tamper protection and features also an X-BUS status LED and on-board buzzer for easy device identification and extensive self-diagnostic capabilities.

More Information

More Information
Stock	Order on Request
Wired Or Wireless	Wired
On Board Zones	Up To 8
Range	Acre SPC Series
Part Number	SPCE651.100
Brand	Acre
Category	Intruder, Expanders
