Dantech Sixteen 1A 24VAC Outputs, 230V Input 2U Rack Mount 16A Power Supply
SKU#:
0304750
Part No:
DA441-16
In Stock
In Stock
About this product

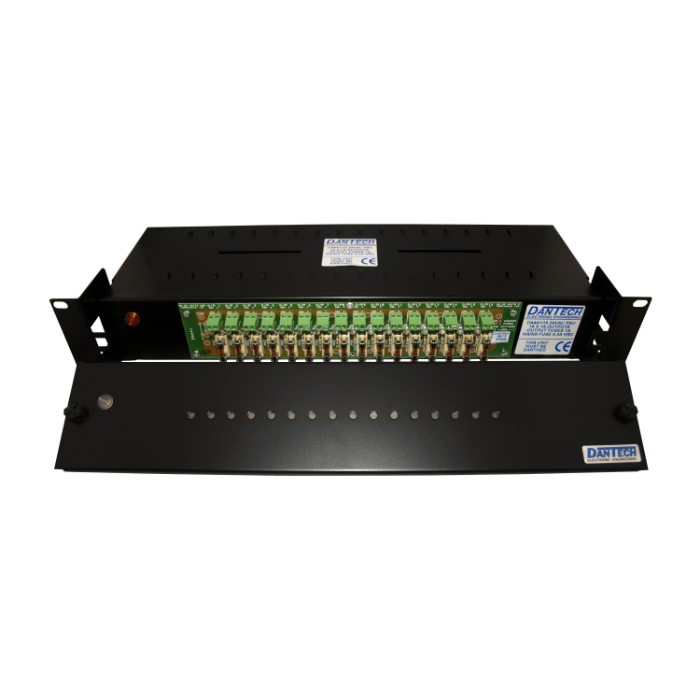

DA441-230V-16: Sixteen 1A 24VAC outputs, 230V input 19" 2U Rack-mount 16A power supply
19" 2U rack-mountable power supplies, which accept a mains voltage of 230VAC @ 50Hz (+/- 10%) and will provide an output of 16A at 24VAC via sixteen individually fused 1A outputs. These units have a removable front plate for ease of access to front-mounted terminations. Typical uses include powering CCTV cameras and camera housing heaters.
16x 1A individually fused outputs
Each of the outputs can continuously provide 1A at 24VAC and is protected with a quick-blow 2A glass fuse.
Mild steel 19" Rack-mount enclosures
Manufactured from mild steel and powder-coated in textured black for an easy-clean, durable finish. The enclosure includes a removable front plate for easy access to the output terminals whilst installed in a rack cabinet.
Input 230VAC @ 50Hz (+/- 10%)
Designed to operate on UK standard mains power, this unit accepts 230VAC @ 50Hz (+/- 10%). This unit includes a power lead with a UK plug and IEC C14 connector that plugs into the rear of the unit.
- Sixteen 24V 1A AC individually fused outputs
- Removable front plate with front mounted outputs
- 230VAC mains input
- 19'' 2U rack mountable enclosure
Product Datasheet
| Stock | In Stock |
|---|---|
| Part Number | DA441-16 |
| PSUs | 24VAC, Boxed, Rackmount |
| Brand | Dantech Electronic Engineering |
| Category | Power & Connectivity, PSUs |
