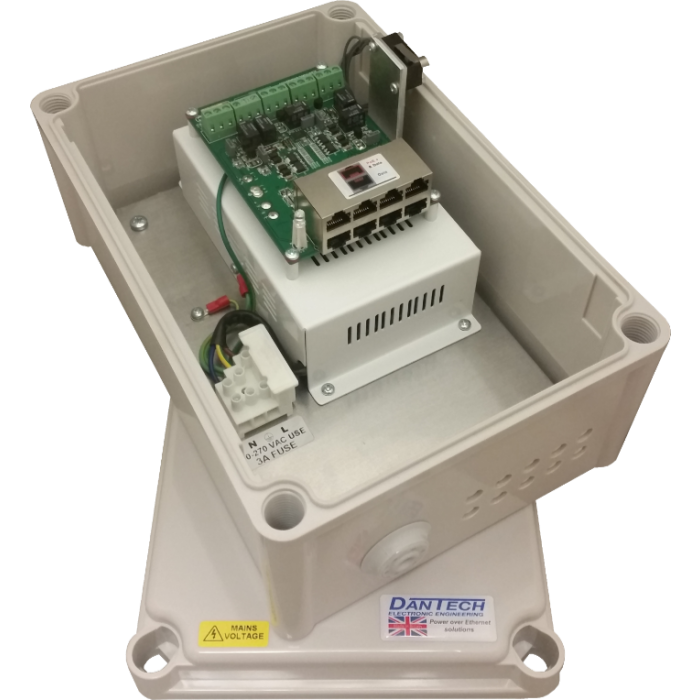

The DA1000-EX-4-G Midspan PoE+ injector is ideal for outdoor and harsh environments where up to four devices require PoE power. The unit delivers up to 30W on each channel and provides Gigabit bandwidth. Simply connect devices for plug-and-play operation.
Each channel comprises an RJ45 data port (e.g. for connection to a network switch) and an RJ45 load port for power and/or data connection to the PoE device. Power continues to be delivered to PoE devices even if the data connection to the network is lost.
Individual channels have LED indication to show if a compatible device is connected and powered. There are relay contacts for monitoring the power status of each channel. The unit also has power on LED indication and relay contacts to signal power failure, as well as tamper protection.
- Four Gigabit ports with 30W of PoE+ each
- 90-270VAC, 47-63Hz universal mains input
- Power status LEDs & monitoring contacts
- Multi-purpose monitoring relay contacts
- IP66 enclosure with fast cable entry & tamper
