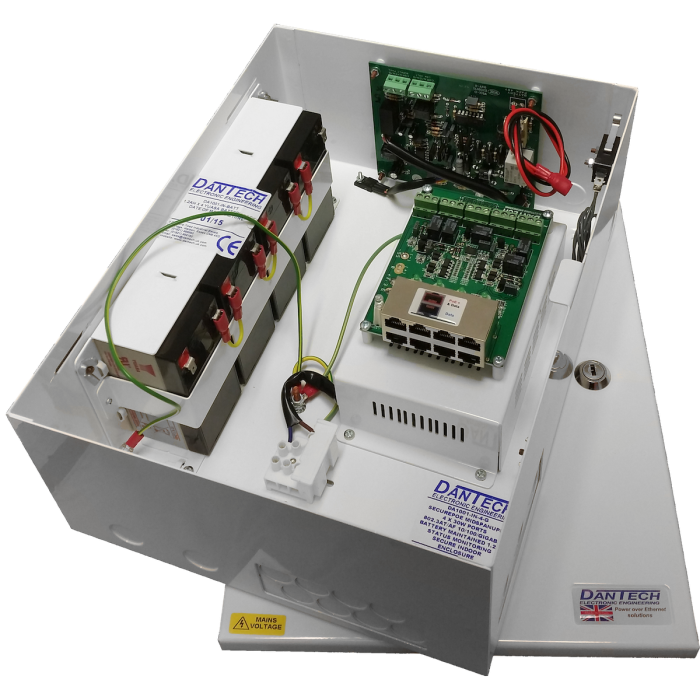

The DA1001-IN-4-G is a 1.2Ah MidspanUPS PoE injector, ideal for indoor environments where up to four devices require reliable battery-backed PoE power. The unit delivers up to 30W on each channel and provides Gigabit bandwidth. Simply connect devices for plug-and-play operation.
Each channel comprises an RJ45 data port (e.g. for connection to a network switch) and an RJ45 load port for power and/or data connection to the PoE device. Power continues to be delivered to PoE devices if mains power fails or the data connection to the network is lost.
Individual channels have LED indication to show if a compatible device is connected and powered. There are relay contacts for monitoring the power status of each channel. The unit also has power on LED indication and relay contacts to signal power failure.
With 1.2Ah of integrated VRLA battery-backed power, tamper protection and status monitoring contacts, these units are ideal for security applications.
- Four Gigabit ports with 30W of PoE+ each
- 90-270VAC, 47-63Hz universal mains input
- Power status LEDs & monitoring contacts
- Multi-purpose monitoring relay contacts
- Tamper switched steel enclosure with fast cable entry system
- Integrated UPS
