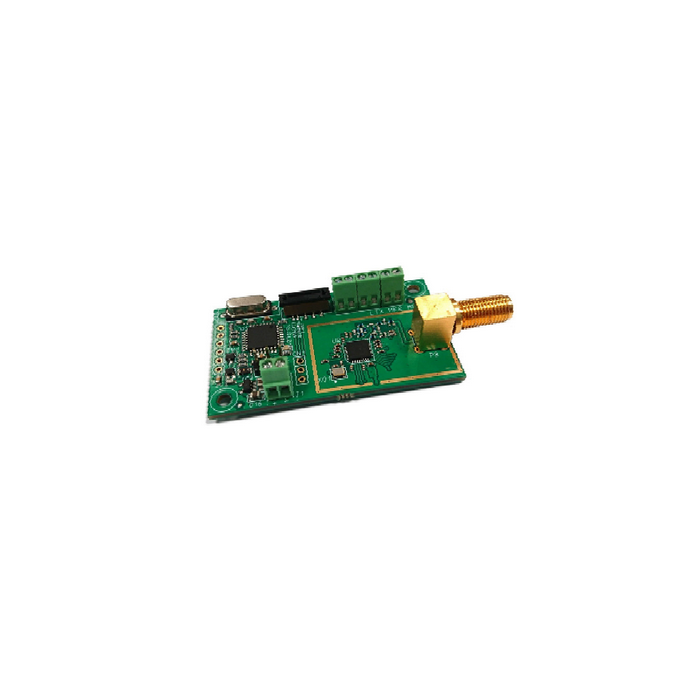

Scope 9VDC LTX 4 Zone Transmitter Module (PCB only) with SMA ant. Connector
SKU#:
0954440
Part No:
LTX9VSMAM2
Features
- Frequency programmable: 433-459 MHz (UK/Europe).
- RF power output: 0-13.9 dBm
- 4 dry (volt-free) trigger contacts, programmable as Normally Open, Normally Closed or Toggle operation.
- Multiple repeat option (programmable) with variable repeat timer.
- Test call option (programmable)
About this product
Additional features
- Programmable "Repeat Until Cancel" option available on contact 1. Repeat time interval is programmable. Reset
- function on contact 4 (cancels all repeats).
- Serial data input.
- Configurable trigger messages, 21 characters max per contact.
- Configurable Reset message, 21 characters max.
- Configurable Low Battery message, 21 characters max.
- Configurable Battery Shutdown message, 21 characters max.
- Programming via Scope programming cable and PC based application software.
- Configurable Message for each Contact (Up to 21 Chars)
More Information
| Stock |
Order on Request |
| Part Number |
LTX9VSMAM2 |
| Brand |
Scope |
| Category |
Intruder, Paging |
