Videx Portal Plus Proximity Reader
SKU#:
0742130
Part No:
MINI-M
Order on Request
Order on Request
About this product

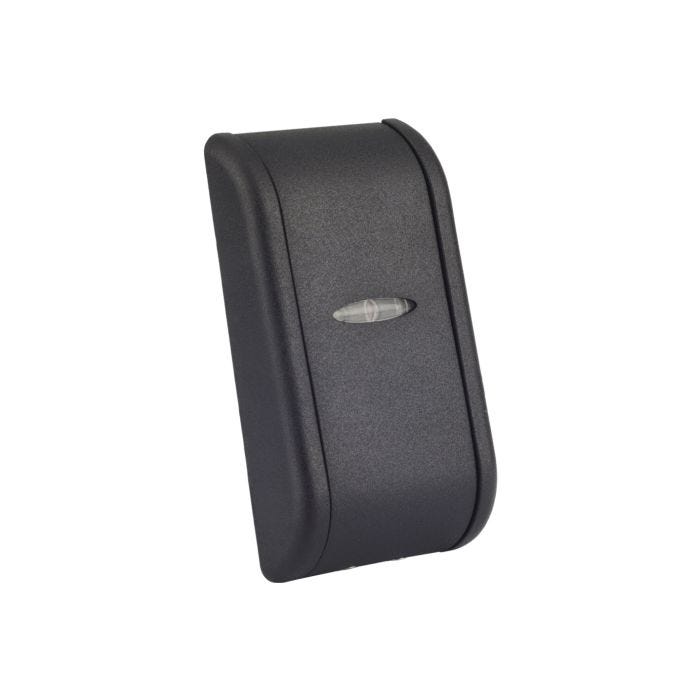

The MINI-M is a surface mount Portal Plus proximity reader in an IP67 rated low profile matt black ABS housing. It is compatible with Wiegand 26 - 40bit protocol. With a read range of up to 5cm it can read EM4002/4100 compatible fobs/cards with an operating frequency of 125kHz. Incorporating a 3 status LED's (orange, red and green) with audible and visual indication with resin potted electronics.
- IP67 rated low profile surface matt black ABS housing.
- Wiegand 26 - 40bit communication protocol (default 26bit).
- Up to 5cm read range that reads EM4001/4100 compatible fobs/cards, 125kHz operating frequency.
- 3 status indication LED's (orange, red and green) with audible feedback.
- 12VDC operating voltage with low current consumption (50mA max.).
- Dimensions: 90x51x17mm.
Product Datasheet
