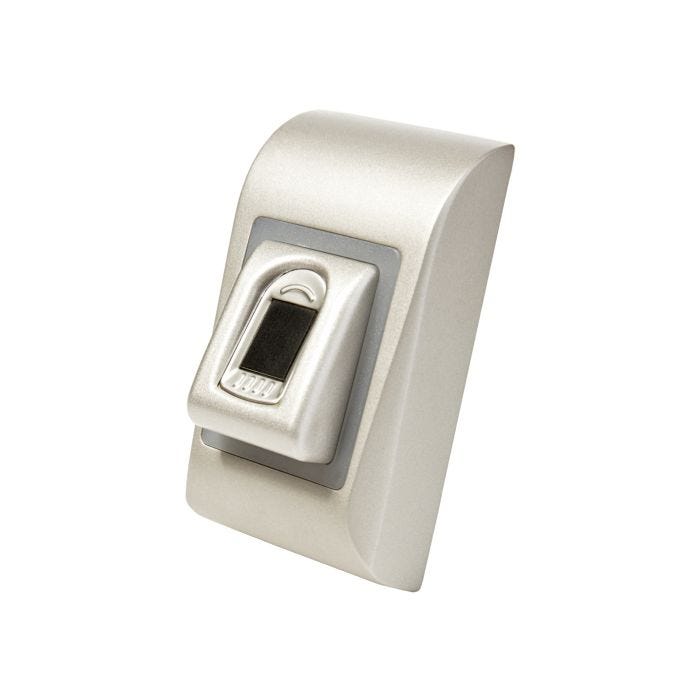

The BIOCS is a surface mount Portal Plus fingerprint reader in an IP65 rated aluminium die-cast housing. Utilising capacitive biometry technology it can be used with the Portal Plus system. It can store up 9500 templates and uses the Wiegand 18 - 128bit protocol. Like the proximity readers it incorporates a tri-colour LED (orange, red and green) with audible and visual status indication and resin potted electronics.
- IP65 rated surface die-cast aluminium housing.
- Can store up to 9500 fingerprint templates.
- Wiegand 18 - 128bit communication protocol (default 26bit).
- Tri-colour status LED indication (orange, red and green) with audible feedback.
- Programmable using the same PROS CS software as the proximity readers
- Dimensions: 92x 51x37mm.
