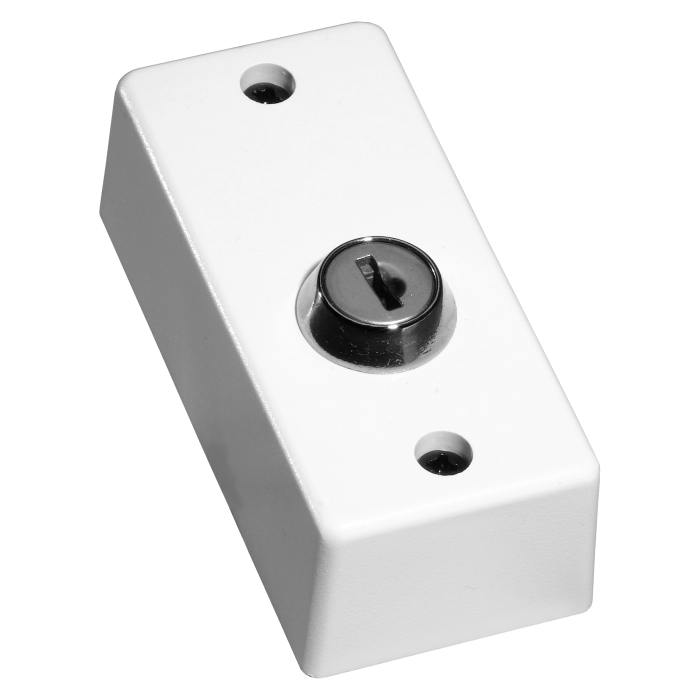

The P03 is a surface mount, two position keyswitch device of polycarbonate plastic construction.
The unit operates with a SPCO microswitch, with the pole configurable as NO or NC.
3 terminals are provided for wiring the pole directly on the microswitch. A two terminal leaf tamper is provided for detection of lid removal.
2 keys are supplied with each unit - each unit keyed differently to the next. The switch will latch in place when the key is turned, with the key removable in either position.
Dimensions: 90x38x30mm.
Key blanks are available - use part code POKEY.
- SPCO operation
- NO / NC configurable
- Supplied complete with 2 keys
- Latching unit
- Tampered (leaf)
