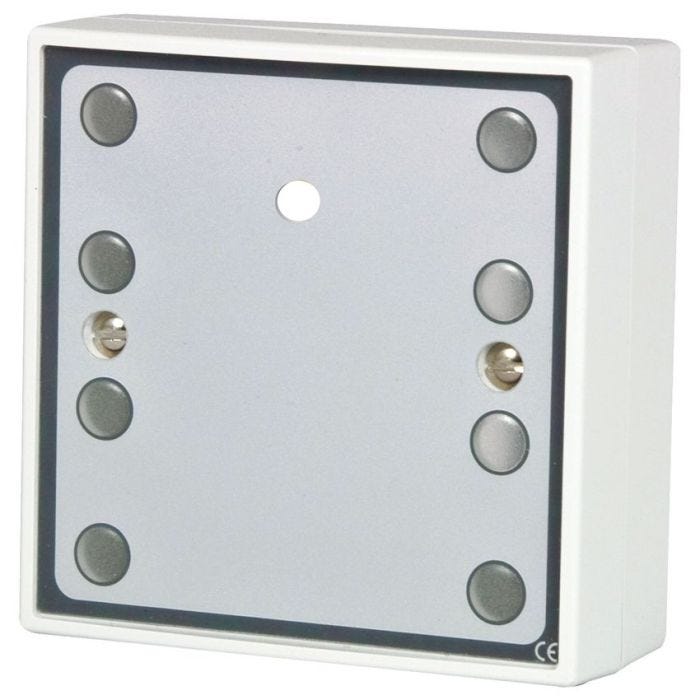

Overdoor light and sounder with LEDs
SKU#:
0902100
Part No:
S1778PY
Order on Request
Order on Request
About this product
Overdoor light with 8 high brightness LEDs (RED, BLUE, GREEN or YELLOW) and an integral sounder. The LEDs and sounder are current limited for 12vdc operation. The single gang low profile ABS enclosure is fitted with a mark resistant decal. For a high power sounder version see our S1788P range.
Specification
Led Current - 150mA@12vdc
Sounder Current - 25mA@12vdc
Switch Contacts - N/A
Visual Indication -8 x high brightness LEDs
Integral Sounder Level - 70db@10cm
Tamper - N/A
Material - White ABS
Weight - 0.12kg
87 x 87 x 36mm (Surface mount)
IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
Approvals - CE and RoHs compliant
Can be Semi Flushed onto standard flush back box (Not supplied)
Back box supplied for surface mount
Mark resistant decal
Product Datasheet
| Stock | Order on Request |
|---|---|
| Warning Device Type | External, Sound, Light |
| Part Number | S1778PY |
| Brand | Hoyles |
| Category | Intruder, Warning Devices |
