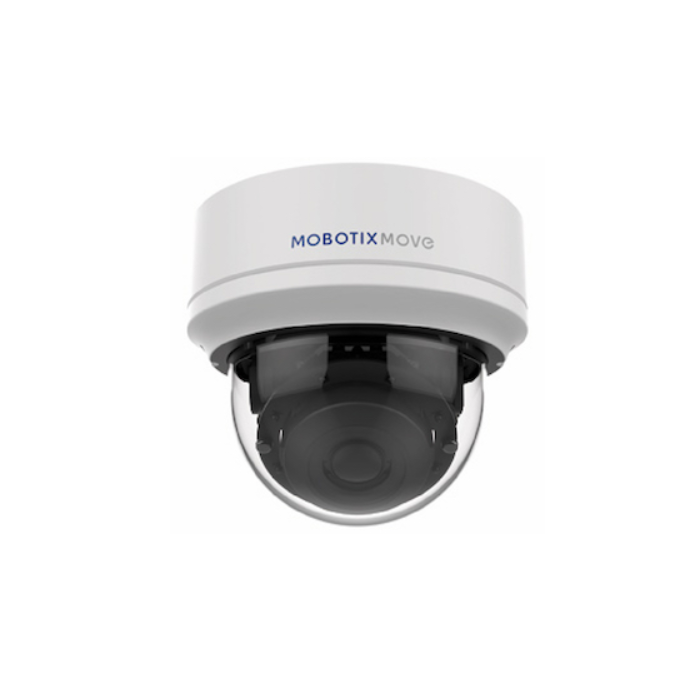

Mobotix MOVE Vandal Dome 5MP IR (Video Analytics)

SKU#: 0871180
Part No: Mx-VD1A-5-IR-VA
Order on Request
Order on Request

About this product

MOBOTIX MOVE Vandal Dome Network Camera VD-5-IR-VA (Video Analytics) • Weatherproof ONVIF S / G / T dome camera with integrated IR LEDs (up to 40 m) for day and night operation • Max. Image Resolution: 5MP (2720 x 1976), 1/2.7" Progressive CMOS • Automatic changeover from colour to B / W image (mechanical IR cut filter) • Remote Zoom • Motor-controlled Varifocal lens (F1.6: 2.7 to 12 mm, viewing angle H: 102.1°-31.5 °, V: 70.3 °-22.7 °) with Auto Iris with automatic adaptation to changing light situations • 3-axis lens adjustment • IP66, IK10 • Ambient temperature -55 to 60°C, (heater switched on) humidity 10 to 90% non-condensing • Video codecs: H.264, H.265, MJPEG (up to 4 video-streams simultaneously ) • True WDR (130 dB) • Max. Frame rate: 5MP H.264, H.265 30 fps WDR On, 60 fps WDR Off; MJPEG: max. 1080p @ 30 fps • Power supply: PoE IEEE 802.3af or DC 12V (13W) or AC 24V; max 14 W• Warranty: 2 years - Camera Type: Dome Camera - Application Area: Indoor and Outdoor - IP Class: IP66, IK Class: IK10 - Integrated IR: Yes - Focal Length: 2.7 to 12 mm - Image Sensor: 5MP, 1/2.7“ Progressive CMOS
Product Datasheet
pdf
(Size: 12.4 KB)
More Information
Stock Order on Request
Part Number Mx-VD1A-5-IR-VA
Resolution 3-5MP
Lighting IR - Networked
Technology IP
Range Mobotix Move Series
Analytics Analytics
Function Internal, External, External Vandal , Audio
Lens Remote Varifocal
Colour White
Brand Mobotix
Category Cameras, Domes
