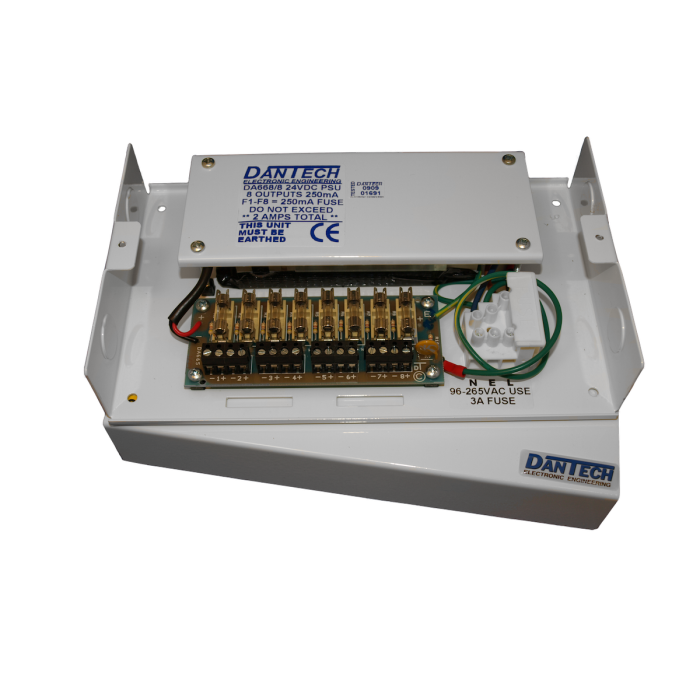

DA668-8: Mild steel 8x 24V 250mA DC Multi-purpose 2A power supply
These versatile switch-mode power supplies can accept a wide range of AC input voltages, from 90V to 270V with frequencies of 47 to 63Hz, and they will provide a regulated output of 24VDC up to 2A total via a fused output.
Mild steel powder-coated enclosures
Manufactured from mild steel and powder-coated white for an easy-clean, durable finish, this enclosure is ideal for wall-mounting. The enclosure includes 'knock-outs' for cable gland entries, e.g. for mains power.
Includes a spares bag mounting kit
Each unit includes a spares bag for the installation engineer. This kit contains useful items, such as cable glands, wall plugs and fixing screws.
90V to 270VAC Input @ 47Hz to 63Hz
Designed to operate on mains power supplies world-wide, this unit can accept a wide range of input voltages, from 90V to 270VAC @ 47Hz to 63Hz.
- Eight 24VDC 250mA individually fused outputs
- Switch-mode technology
- Mild steel powder coated enclosures
- Includes a spares bag mounting kit
- 90V to 270VAC input @ 47Hz to 63Hz
