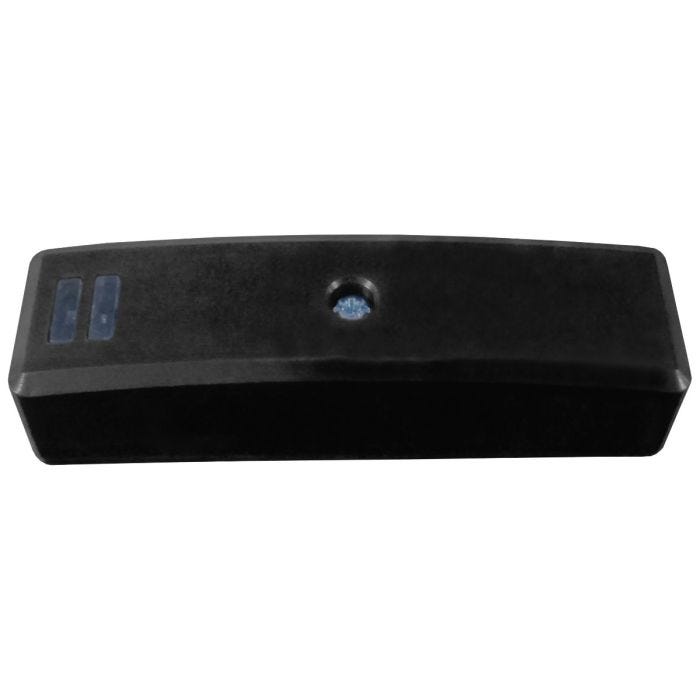

Knight BLACK Grade 3 Shock Sensor and Tilt Sensor (Advanced)
SKU#:
0932320
Part No:
SEISMO-ADVANCEBK
Features
- Grade 3
- Black housings
- Complies with the brand new EN50131-2-8:2016 standard
- Sensitivity Auto calibration
- Sensitivity pot
- Selectable EOL and Alarm resistors
- Rear tamper detection (meeting G3)
- LED enable jumper
- Suitable for mounting in the ‘V BOX’
- Pulse count selectable on board
About this product
Additional features
- Pulse count selectable via serial link
- Vibration and surface / tilt detection selectable on board
- Motion sensing available on any movement along the vertical plane
- Vibration and surface / tilt detection selectable via serial link
- Fault output
- Selectable Fault resistors
- Latch terminal
- First to Alarm memory
- Remote LED enable
- Heartbeat LED
- Serial connection option
- EOL Resistor options: 1k,2k2,4k1,4k7,5k6
- Alarm Resistor options: 1k,2k2,4k1,4k7,5k6,6k8
- Fault Resistor options: 2k2,3k,6k8,12k
- Dimensions(mm): 88 x 25 x 22.8
More Information
| Stock |
Order on Request |
| Detector Type |
Shock Sensor |
| Grade |
Grade 3 |
| Part Number |
SEISMO-ADVANCEBK |
| Brand |
Knight |
| Category |
Intruder, Intruder Detectors |
