AMG’s industrial Ethernet surge protectors provide protection for 10/100/1000Mb Ethernet equipment with support for pass-through PoE up to 65W. These single channel models are designed to plug into and protect existing RJ45 ports.

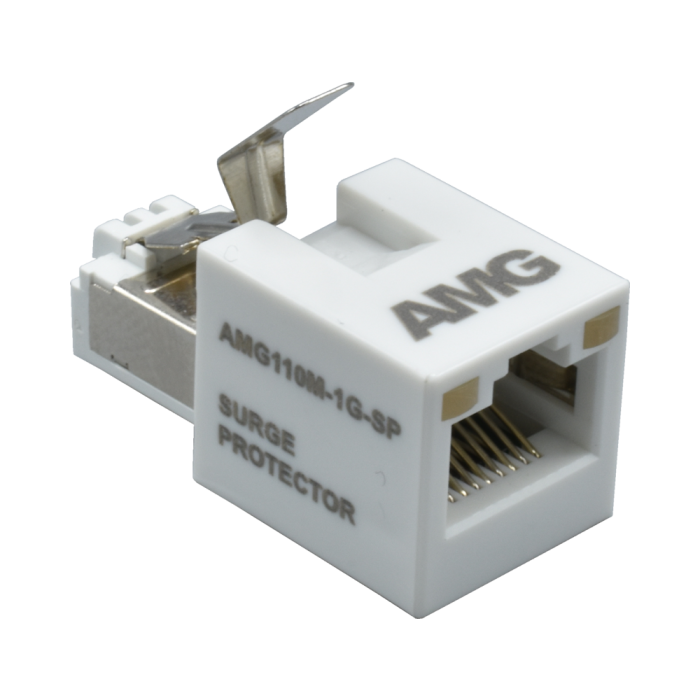

Designed in a compact in-line RJ45 housing the AMG110M surge protector provides easy to install surge & ESD protection for Ethernet based equipment that may be susceptable to damage from surge or voltage transient events.
Ultra compact size – can be connected in-line with standard RJ45 ports on correctly grounded equipment
-40°C to +75°C temperature maintains performance in extreme conditions
Supports Ethernet speeds of 10/100/1000Mb
No additional ground cables required
Certified to multiple ESD and surge protection standards including EN 61000-4-2, EN 61000-4-5 and IEC 61643-11
Simple and quick installation process
Supports PoE Pass-Through up to 65W
Transparent to all types of traffic and protocols including VLAN’s, Jumbo Frames, Multicast etc.
