Hoyles Two LEDs and Button with Custom text Stainless steel

SKU#: 0570620

Part No: S1715STC

Order on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Led Current - 20mA per LED@12vdc
Switch Contacts - Single pole normally open 2A@ 30vdc
Sounder Current - N/A
Visual Indication - 1 x red LED 1 x green LED
Integral Sounder Level - N/A
Tamper - N/A
Material - 316 Grade Stainless Steel
Dimensions - 86 x 86 x 2mm - Facia

Order on Request

About this product

Description

Additional features

38mm galvanised back box supplied
Surface mounted using part no. S0610 listed below
Weight - 0.26kg
IP Rating - IP65 front side contact area
Approvals - CE and RoHs compliant

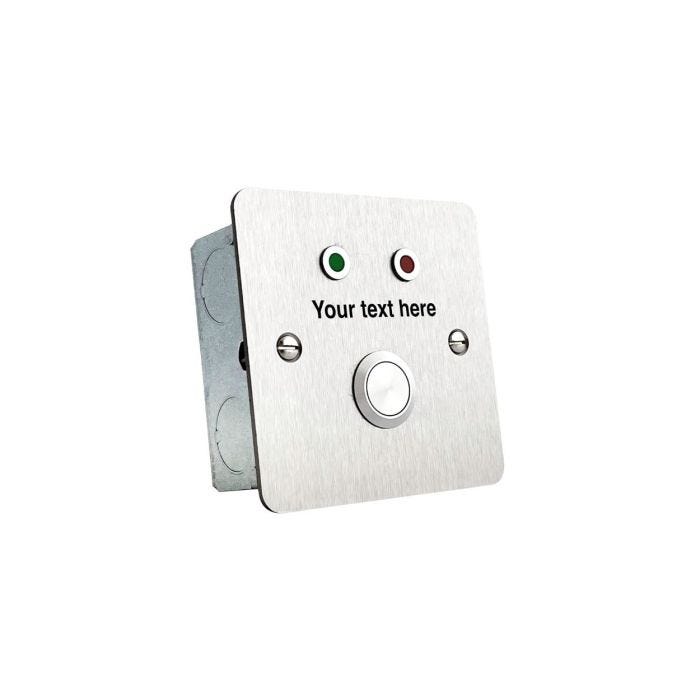

Flush fitting stainless steel button with one red and one green flat LED in chrome bezels. This is a non-latching unit with single pole change over contacts. Separate terminals are provided for the LED's. The LED current limit resistor is provided for 12 vdc operation.

Datasheets + Resources

Product Datasheet

Datasheet

(Size: 308.5 KB)

More Information

More Information
Stock	Order on Request
RTE, Reset, Break Glass Units and Call Points	RTE Break Glass Units and Call Points
Part Number	S1715STC
Brand	Hoyles
Category	Access, RTE Reset Break Glass Units and Call Points
