Features
Additional features

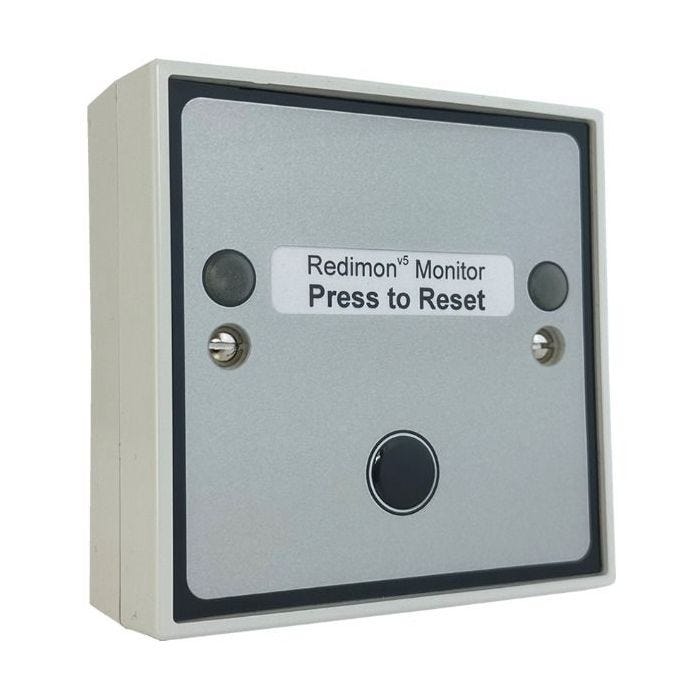

REDIMON is a unit which can fully monitor two open circuit momentary devices such as Dado Panic Strip, push buttons or foot switches and gives volt free changeover contacts for both alarm and fault conditions. An end of line resistor (6k8) is fitted at the remote ends of Dado Panic Strip. Pressing the Dado Panic Strip creates a short circuit which will be detected as an alarm condition. If the Dado Panic Strip becomes disconnected in any way a fault condition is generated. An integral reset button is used to reset the unit after an alarm event.
Status LEDs are provided, normally a green LED would be illuminated for system healthy, the red LED indicates an alarm, and alternate flashing of the red and green LEDs would indicate a fault condition.
| Stock | Order on Request |
|---|---|
| Detector Accessories | Other |
| Part Number | REDIMON5 |
| Brand | Hoyles |
| Category | Intruder, Detector Accessories |
