Features

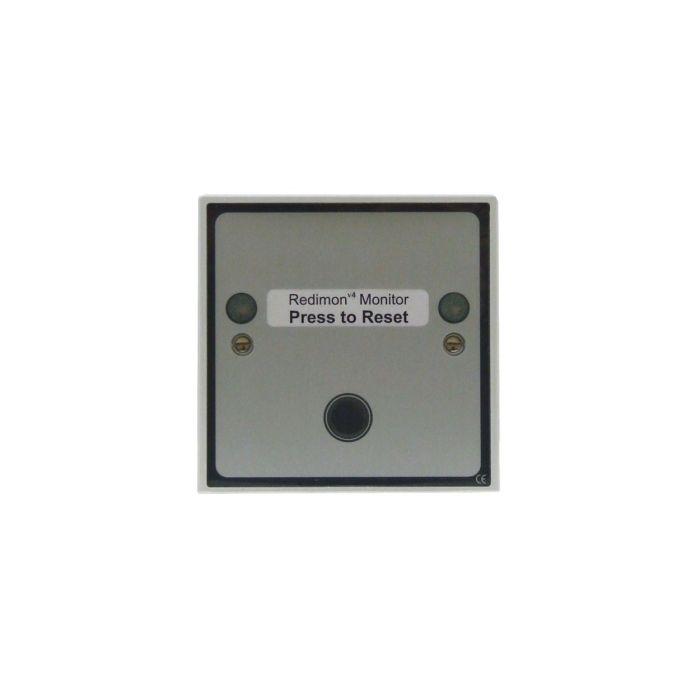

REDIMON is a 12vdc powered unit which can fully monitor two open circuit momentary devices such as Dado Panic Strip, push buttons or foot switches and gives volt free changeover contacts for both alarm and fault conditions. An end of line resistor (6k8) is fitted at the remote ends of Dado Panic Strip. Pressing the Dado Panic Strip creates a short circuit which will be detected as an alarm condition. If the Dado Panic Strip becomes disconnected in any way a fault condition is generated. An integral reset button is used to reset the unit after an alarm event.
Status LEDs are provided, normally a green LED would be illuminated for system healthy, the red LED indicates an alarm, and alternate flashing of the red and green LEDs would indicate a fault condition.
The REDIMON gives a 12V output for driving strips of LEDs in Dado Panic Strip, these LEDs can operate in 3 different ways which is controlled by adjusting the potentiometer.
REDIMON also provides a 12vdc output for driving strips of LEDs in Dado Panic Strip and can be configured to drive the LEDs in 3 different ways.
The REDIMON gives a 12V output for driving strips of LEDs in Dado Panic Strip, these LEDs can operate in 3 different ways which is controlled by adjusting the potentiometer to positions 1, 2 or 3.
Position 1: The LEDs will be on then when the unit goes into alarm the LEDs will start to flash.
Position 2: The LEDs are off then when the unit goes into alarm the LEDs will turn on.
Position 3: The LEDs are off, then when the unit goes into alarm the LEDs will begin to flash.
| Stock | Order on Request |
|---|---|
| Category |
