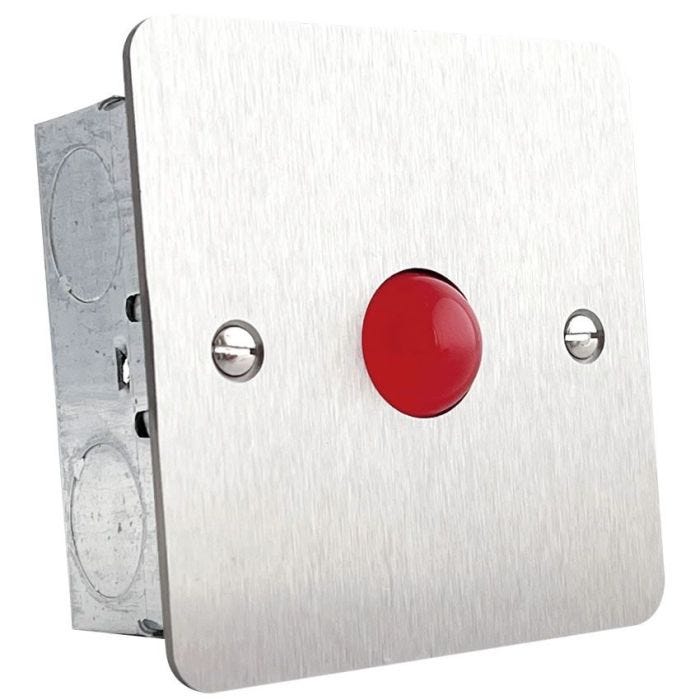

Hoyles Red Overdoor Light and Sounder Stainless Steel

SKU#: 0570630
Part No: S1778SR
Order on Request

Features

  • Led Current - 50mA @12vdc
  • Switch Contacts - N/A
  • Sounder Current - 40mA @ 12vdc
  • Visual Indication - 1 x Red Jumbo LED
  • Integral Sounder Level - 90dB@10cm
  • Tamper - N/A
Order on Request

About this product

Additional features

  • Material - 316 Stainless Steel
  • Dimensions - 86 x 86 x 2mm - Facia
  • 38mm galvanised back box supplied
  • Surface mounted using part no. S0610 listed below
  • Weight - 0.26kg
  • IP Rating - IP65 front side contact area
  • Approvals - CE and RoHs compliant

Flush fitting overdoor light/sounder 20mm jumbo LED. There are separate terminals provided for the LED and sounder. Configured for operation at 12vdc. The connections for the LED and sounder are configured with a common positive and individual switched negatives, see installation instructions for further details. We can manufacture this item with common negative on request. Pin-hex anti tamper screws are available as an option for this product.

Product Datasheet
pdf
(Size: 241.9 KB)
More Information
Stock Order on Request
Warning Device Type Internal, Sound, Light
Part Number S1778SR
Brand Hoyles
Category Intruder, Warning Devices
