Hoyles Press to Exit button Stainless steel
SKU#:
0917760
Part No:
S1706S
Order on Request
Order on Request
About this product

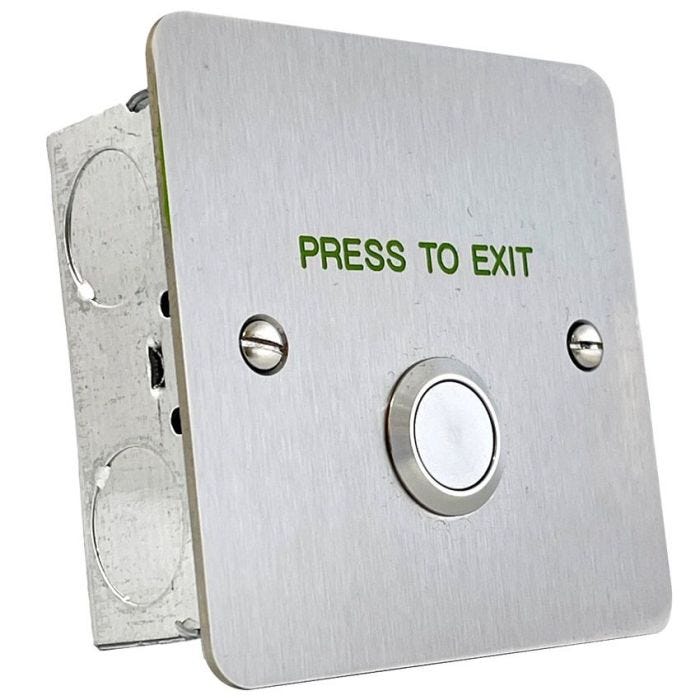

Flush Fitting stainless steel engraved Press to Exit push button with vandal resistant button. This is a single pole non-latching unit with change over contacts. Suitable for use with access control systems etc.
Specification
- Led Current – N/A
- Switch Contacts – Single pole normally open 2A@ 30vdc
- Sounder Current – N/A
- Visual Indication – N/A
- Integral Sounder Level – N/A
- Tamper – N/A
- Material – 304 Grade Stainless Steel
- Dimensions – 86mm x 86mm x 2mm – Facia
- 38mm galvanised back box supplied
- Surface mounted using part no. S0610 listed below
- Weight – 0.25kg
- IP Rating – IP65 front side contact area
- Approvals – CE and RoHs compliant
| Stock | Order on Request |
|---|---|
| RTE, Reset, Break Glass Units and Call Points | RTE Break Glass Units and Call Points |
| Part Number | S1706S |
| Brand | Hoyles |
| Category | Access, RTE Reset Break Glass Units and Call Points |
