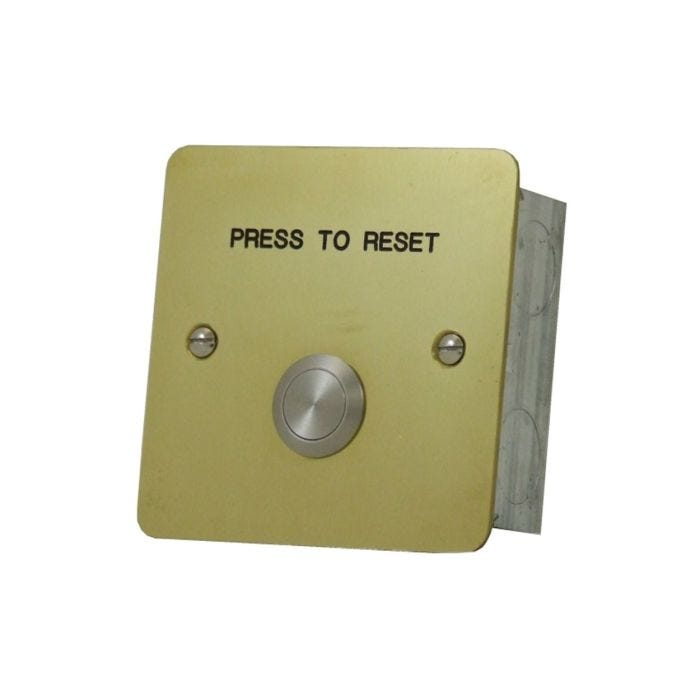

Hoyles Polished Brass Press to Reset Button

SKU#: 10853280

Part No: S1708BR

Order on Request

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Features

Led Current - 20mA@12vdc
Switch Contacts - Single pole normally open 2A@ 30vdc
Sounder Current - 40mA@12vdc
Visual Indication - 1 x Red LED
Integral Sounder Level - 70db@10cm

Order on Request

About this product

Description

Additional features

Tamper - N/A
Material - Polished Brass
Dimensions - 86 x 86 x 2mm - Facia
38mm galvanised back box supplied
Weight - 0.27kg
IP Rating - IP44 front side contact area
UKCA and CE marked, ROHS compliant
Manufactured in the UK
Weather gaskets for the rear of plates, anti tamper screws and stainless steel mock pattress surrounds for surface mounting are available

Flush fitting polished brass Press To Reset unit with vandal resistant button, re-assurance red LED and sounder. This is a non latching (momentory) with single pole normally open contacts. Separate terminals are provided for the LED, sounder and button, the LED current limit resistor is provided for 12 vdc operation. Customised versions available on request.

Datasheets + Resources

Product Datasheet

Datasheet

(Size: 181.7 KB)

Product Manual

Manual

(Size: 240 KB)

More Information

More Information
Stock	Order on Request
RTE, Reset, Break Glass Units and Call Points	RTE Break Glass Units and Call Points
Part Number	S1708BR
Brand	Hoyles
Category	Access, RTE Reset Break Glass Units and Call Points
