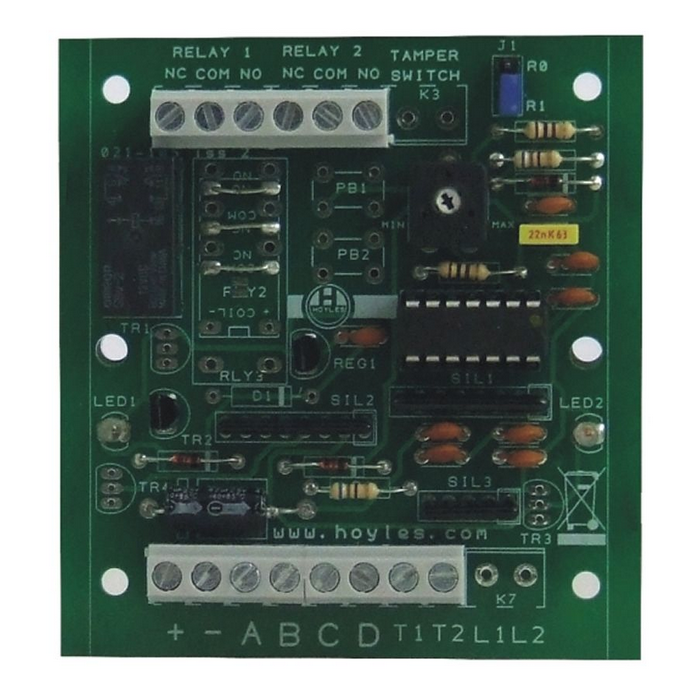

Hoyles Multi Function Timer Relay 24 vdc

Universal timer module with two timing ranges 1 - 60 sec's & 1 - 60 mins. Volt free DPCO relay contacts are rated at 1A/30vdc resistive. Multiple trip modes. A-stable operation for pulsing sounders etc. This versatile unit can also be used as a commutating relay ie one pulse energises the relay and a further pulse de-energises the relay.

• Requires 24vdc supply at 85mA
• Contacts Rated at 1amp
• Six mounting holes provided for more permanent fixing
• Screw terminals for easy connection

Dimensions - L80 x W74 x D16mm
