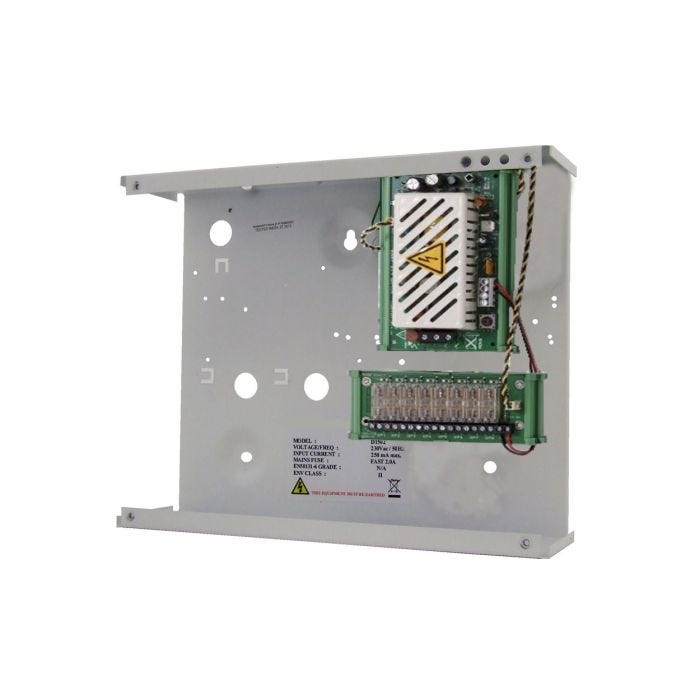

Hoyles Eight Output 12vdc 5A PSU in a Steel Enclosure

SKU#: 0942080
Part No: PSU-12/5AB-8
Order on Request

Features

  • Virtually no heat produced means they can be installed almost anywhere without the need for noisy cooling fans
  • Unique battery charging feature reduces strain on batteries, thus prolonging their life
  • Self-resetting electronic fuses auto-reset after problem goes away, helping reduce engineer call outs
  • Anti-'spike' filtering protects access system from downtime due to blown fuses caused by electric/magnetic door releases
  • 'Green' technology will save at least 131KWh of electricity p.a. for each 1A unit
  • Eight individual fused ouputs with LED indication of blown fuse
Order on Request

About this product

12 volt 5A dc general use switched mode power supply with 8 fused outputs. The unit is capable charging a Lead Acid battery (NOT supplied). Output is 13.6vdc. Housed in a steel case, intended for internal use only.
All units have protection from AC input surges and transients, under and over AC power, over-heating and over-current, battery-reverse connection and over-current battery charge, substantially removing the need for engineer visits to rectify such problems.

Product Datasheet
pdf
(Size: 196.5 KB)
Other Documents
pdf
(Size: 239.6 KB)
More Information
Stock Order on Request
Part Number PSU-12/5AB-8
PSUs 12VDC, Boxed
Brand Hoyles
Category Power & Connectivity, PSUs
