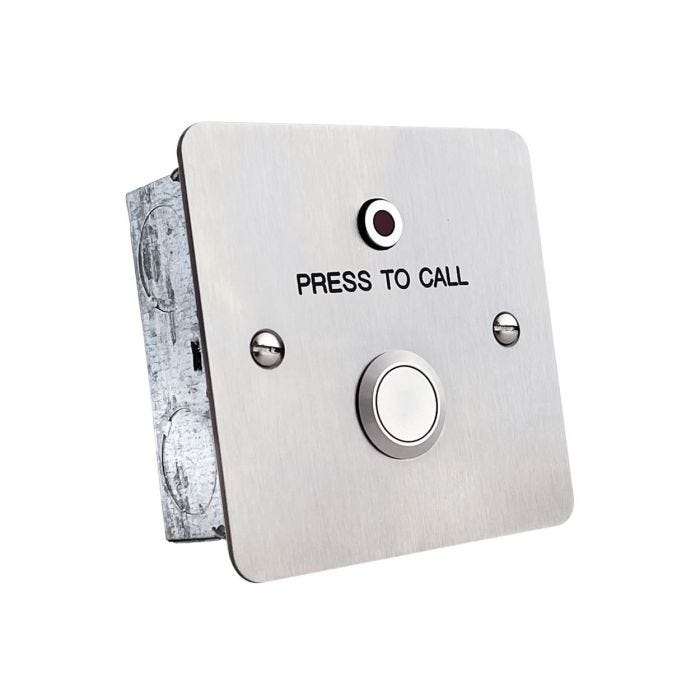

Hoyles Call Button with re-assurance LED, Sounder & Stainless Steel
SKU#:
0766670
Part No:
S1705S-B
Order on Request
Features
- Led Current - 20mA@12vdc
- Switch Contacts - Single pole normally open 2A@ 30vdc
- Sounder Current - 40mA@12vdc
- Visual Indication - 1 x Red LEDs
- Integral Sounder Level - 70db@10cm
- Tamper - N/A
- Material - 316 Grade Stainless Steel
- Dimensions - 86 x 86 x 2mm - Facia
- 38mm galvanised back box supplied
- Surface mounted using part no. S0610 listed below
- Weight - 0.28kg
- IP Rating - IP65 front side contact area
- Approvals - CE and RoHs compliant
Order on Request
