Hoyles 8 way LED Indicator Unit with Sounder

SKU#: 10587290
Part No: S1782PR
Order on Request

Features

  • Led Current - 17.5mA per LED@12vdc
  • Sounder Current - 25mA 12vdc
  • Switch Contacts - N/A
  • Visual Indication - 8 x high brightness LEDs
  • Integral Sounder Level - 70db @10cm
Order on Request

About this product

Additional features

  • Tamper - N/A
  • Material - White ABS
  • Weight - 0.12kg
  • Dimensions 87 x 87 x 36mm
  • Supplied with back box for surface mount
  • Can be semi flushed onto standard flush back box (Not supplied)
  • Mark resistant decal
  • IP Rating - IP44 to maintain the IP rating a suitable sealant or gasket for the rear of the plate is required
  • Approvals - CE and RoHs compliant
  • Manufactured in the UK

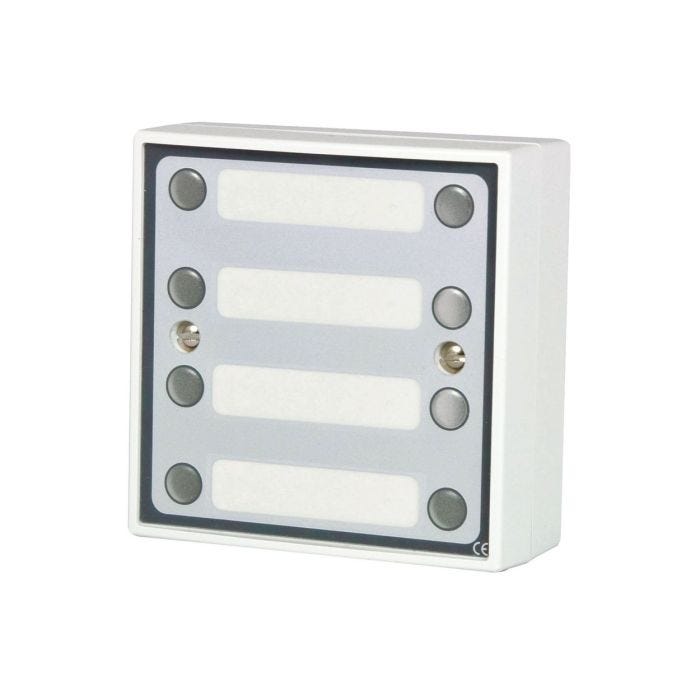

A wall mounted 8 way Indicator unit with sounder in white ABS complete with a single gang low profile mounting box and a scratch resistant decal. There are separate drive inputs for both the individual lights and the sounder. The LEDs are available in RED, GREEN or YELLOW. The LED and sounder limit resistor is provided for operation at 12vdc.

Product Datasheet
pdf
(Size: 233.4 KB)
Product Manual
pdf
(Size: 679.5 KB)
More Information
Stock Order on Request
Part Number S1782PR
Brand Hoyles
Category Intruder, Intruder Controllers
