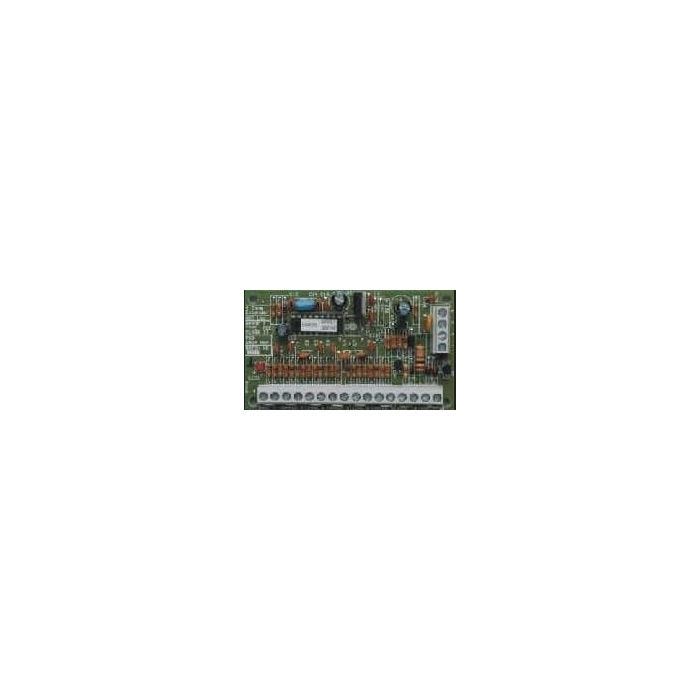

HKC SecureWave Expander - 10 Zone Boxed
SKU#:
0773000
Part No:
UKSW-EXT10B
Key Features:
- All 10 expander zones analysed
- 2 fully programmable changeover relay outputs
- LED indicator for each relay
- Switch to activate each relay manually
- 6 expander cards on SW-1070 keypad bus
- All expander zones with dedicated alarm & tamper terminals
- No DIP switch settings required
About this product
More Features:
- Supply: 13.7Vdc
- Quiescent Current: 80mA
- Current (energized relays): 160mA
- Temperature: -10 to +40 °C
- Weight: 95g
- Size: 125mm x 72mm x 15mm
- EN 50131-1 Grade 2 Class II
More Information
Stock |
Order on Request |
On Board Zones |
Up To 10 |
Part Number |
UKSW-EXT10B |
Brand |
HKC |
Category |
Intruder, Expanders |
