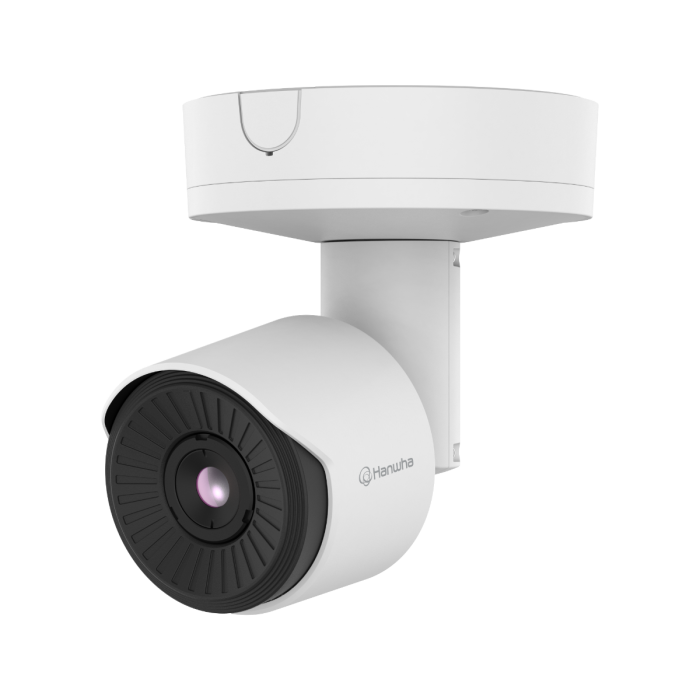

Hanwha Wide Angle QVGA Radiometric AI Thermal Camera

SKU#: 0944480
Part No: TNO-C3010TRA
Order on Request

Features

  • Wide angle lens: 4.4mm fixed focal, H: 90° / V: 65.3° / D: 118.6° (iFoV: 3.9 mRad)
  • QVGA resolution 384x288, up-scaled 768x576, 30fps maximum
  • AI based object classification (person and vehicle) and WiseMD
  • Radiometric monitoring, wide temperature range -40°~ 550°C (-40°F ~ 1,022°F)
  • High performance thermal sensor (17μm, NETD 30mK)
  • 8 Colour Palettes: White hot, Black hot, Rainbow, Sepia, Red, Iron, Custom, Hybrid
  • Compact and light bullet form factor (147 * 233.5mm, 1.7KG)
  • Open Platform, ONVIF Profile S/G/T/M, MQTT Support
Order on Request

About this product

Product Datasheet
pdf
(Size: 1 MB)
Product Manual
pdf
(Size: 10.2 MB)
Other Documents
pdf
(Size: 6.8 MB)
pdf
(Size: 6.8 MB)
More Information
Stock Order on Request
Part Number TNO-C3010TRA
Resolution Up To 1080P
Technology IP
Cyber Security NDAA
Analytics Analytics
Function Internal, External, External Vandal , Internal Vandal, Audio
Lens Fixed
Colour White
Brand Hanwha Vision
Category Cameras, Thermal
