The 24V dc G Range BM Series switch mode power supplies are ideal for applications requiring mains and battery monitoring with volt-free fault outputs. Maximum battery life is assured using deep discharge protection to prevent premature battery failure when operating in standby mode for extended periods.

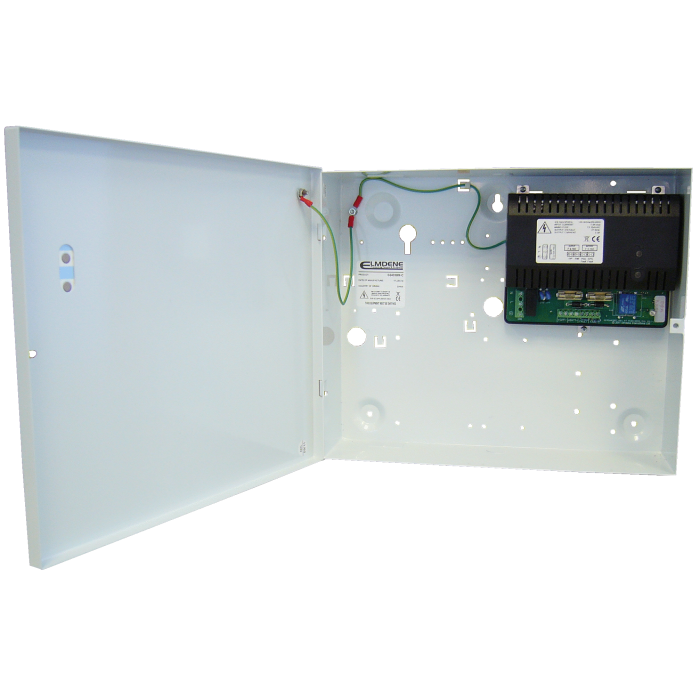

G2403BM-C: 27.6V dc 3A PSU, with Mains and Battery Monitoring. 275H x 330W x 80D (mm). For battery size: 2 x 12V 7Ah
- 27.6V dc 3A PSU, with Mains and Battery Monitoring
- Enclosure: 275H x 330W x 80D (mm). For battery size: 2 x 12V 7Ah
- Full rated current to load + 0.5A battery charging
- Low battery warning
- 2x Volt free fault outputs
- Battery deep discharge protection
