Hoyles Flush Contact for Steel Doors Grade 2 with 5m Cable

SKU#: 0917740
Part No: DCS-AR065M
Order on Request
Order on Request

About this product

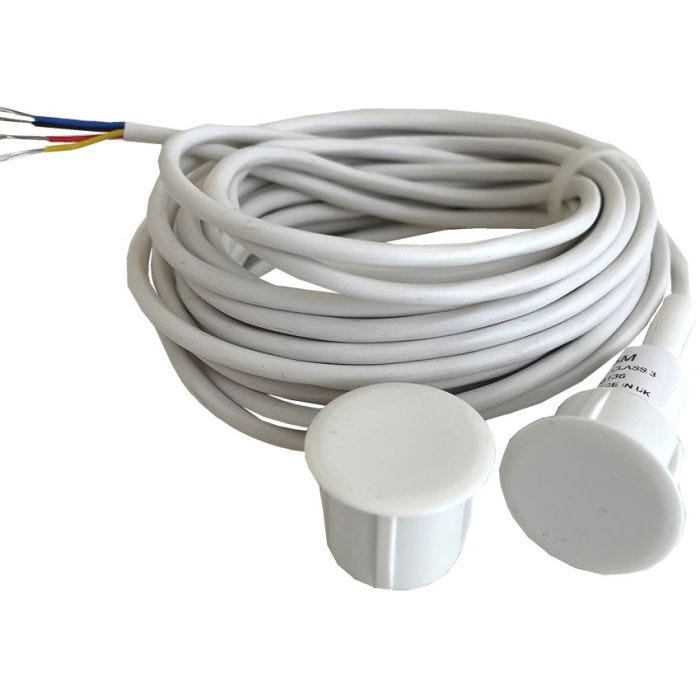

This contact is designed in such a way that magnetic interference from surrounding metals is reduced, allowing it to be used in steel framed doors. The barrel of this contact holds four sloped crush ribs allowing it to easily slide into a 20mm diameter recess, locking at the contact plate.

  • Operating Gap:15- 20mm Approx
  • Contact: Single Reed Normally Closed
  • Voltage Range: 1 to 100vdc 125vac Max
  • Switching Current: 500mA Max DC – 500mA Max AC
  • Temperature Range: -40degC to +50degC
  • Colour: White
  • Environmental Class: 3
  • Tamper: Tamper Loop
  • Dimensions: Refer to Technical Drawing
  • Fly Lead: 5m 4 core
Product Datasheet
pdf
(Size: 123.8 KB)
More Information
Stock Order on Request
Detector Type Flush Contact
Grade Grade 2
Part Number DCS-AR065M
Brand Hoyles
Category Intruder, Intruder Detectors
