Features

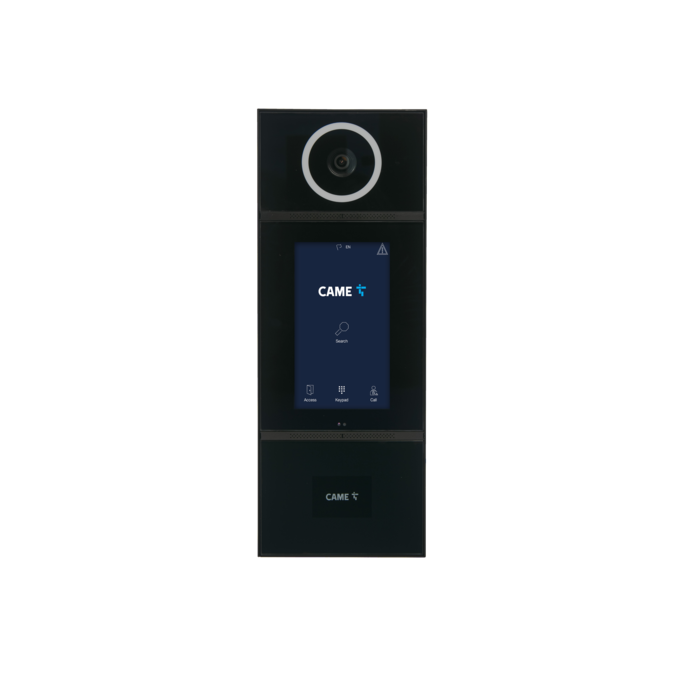

The video intercom entry panel with touch-screen display for IP360 system, wall mounted.Monolithic entry panel in 5 mm thick tempered shatterproof glass, designed for wall mounting, with certified IK08 impact resistance. High brightness 7" anti-glare capacitive TFT touch screen with Optical Bonding technology, 1024 x 600 pixels resolution. Customizable multilingual graphic interface. Video camera sensor with HD 1280x720 resolution and HDR technology, plus built-in microprocessor for digital signal processing. “Ultra wide eye” wide-angle lens, aperture 130° horizontally and 95° vertically. Even illumination of the subject with 30 high-efficiency white LEDs and anti-glare diffuser. Equipped with RTSP protocol for 24/7 viewing of the camera video stream on CCTV systems. It allows access control via Bluetooth with App for smartphones or via RFID badge/tag thanks to the possibility of housing the MTMRFID access control module in the lower area (code 60020250), not supplied, or third party readers. Featuring a local 12V control for electric lock, auxiliary contact (1A, 30V max), inputs for door lock release button and for door status indication (programmable I/O), output for activation of outdoor cameras (programmable I/O). RJ45 port for network connection, PoE power supply (standard IEEE 802.3at POE+, 25.5W) or local 12-24V DC. Equipped with presence sensors to wake up the device from stand-by when someone approaches the entry panel and a brightness sensor to automatically adjust the display brightness according to the ambient brightness. On-board web server for configuring and updating firmware. Possibility of manually configuring different device parameters from the graphic interface. It ensures IP55 rating against water and dust.
| Stock | Order on Request |
|---|---|
| Technology | IP |
| Entry Panel Type | Audio and Video |
| Entry Panel Features | Vandal Resistant, Surface |
| Part Number | XVP-S |
| Brand | BPT |
| Category | Door Entry, Entry Panels |
