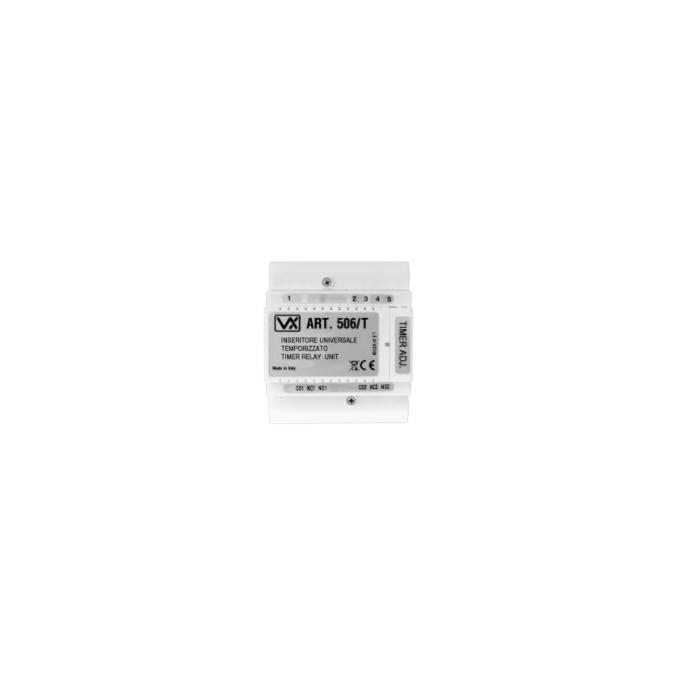

Boxed 12/24v ac/dc relay outputs are 2 x single pole changeover rated at 240v 5 amps. It also includes a low current transistor input positive on negative switched. The relay can be timed via a potentiometer between 2 and 100 seconds. This is a universal relay with which can be used for many applications and in many environments.
- Input – 12-24Vac or dc
- Output – Double pole change over relay (C, NO NC contacts 220Vac 5A max.)
- Dimensions – 87.5mm(L) x 105mm(W) x 65mm(D)
- Material – Plastic
- Mounting – Wall or DIN (5 modules A type DIN)
- Timer – Adjustable from 1-100 seconds
