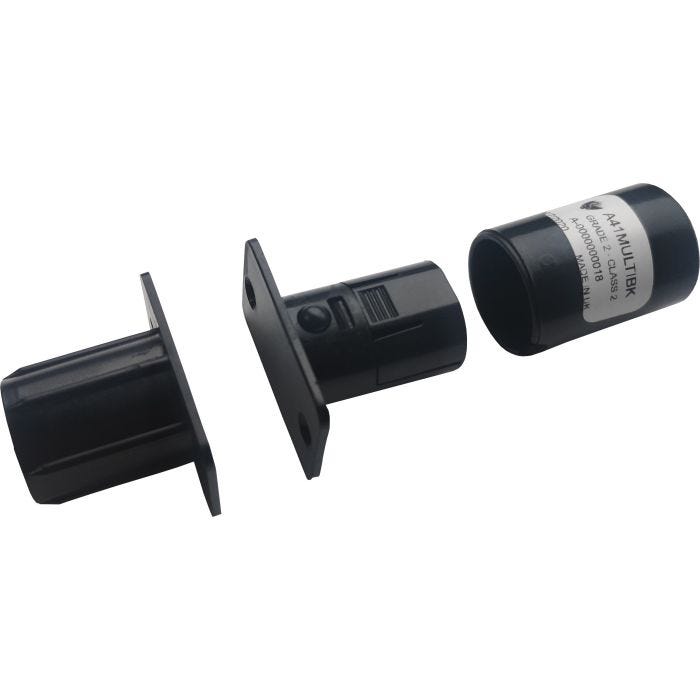

A Grade 2 flush contact, moulded in BLACK ABS, designed for Bespoke aesthetics and easily suited to most intermediate installations. Ideal for double door / shared zone use.
A41MULTIBK features a variety of integral resistors, providing 2 wire EOL installation capability. The resistors will suit a wide range of the most popular panel brands such as Honeywell, Scantronic, RISCO, HKC, Pyronix, Guardall, Castle etc. The resistors are supplied on a set of 4 modules – these are to be inserted into the PCB in order to select the desired configuration. A no-resistor combination provides traditional 4-wire capability where desired.
Wiring is completed using four wire clamping screw down terminals on the PCB.
A microswitch tamper provides detection of removal from the fitting recess.
Along with fitting screws, A41MULTIBK is also supplied with a contact sheath – useful for installations where the fitting recesses have drilled a little wider than 20mm or are otherwise awkward.
| Stock | Order on Request |
|---|---|
| Part Number | A41MULTIBK |
| Brand | Knight |
| Detector Type | Flush Contact |
| Category | Intruder |
