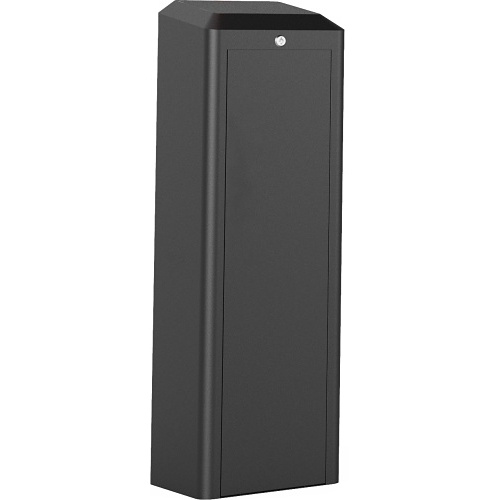

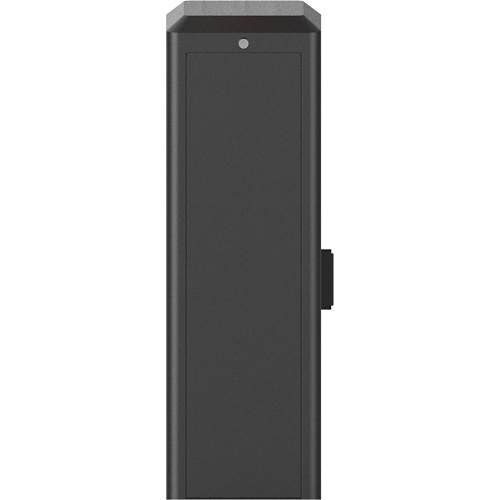

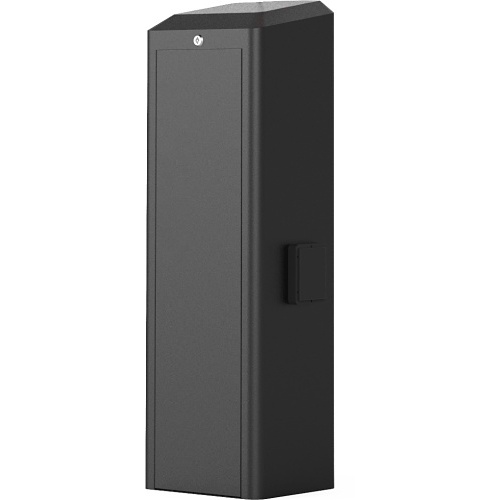

The Hikvision DS-TMG520-H is a straight boom pole barrier gate for managing vehicles at car parks, toll points, residential sites and business entrances. With a 3m boom pole it raises in 0.9 seconds by default (adjustable to 1.2 or 2 seconds) and lowers in 3 seconds, with rise and fall speeds set independently through DC frequency conversion. The iron grey housing is made from 2mm cold rolled steel with an anti-UV, non-fading powder coat and is rated IP54, with an operating range of -30°C to 70°C. The gate can be controlled by relay, 433MHz remote controller or software command, and its embedded vehicle detector works with inductive loops to raise the boom as a vehicle passes. Interfaces include open, close and stop inputs, IR, loop or radar detection, RS-485 and a traffic signal light output, and the DC brushless motor runs on 220VAC and is rated for 5,000,000 cycles.
