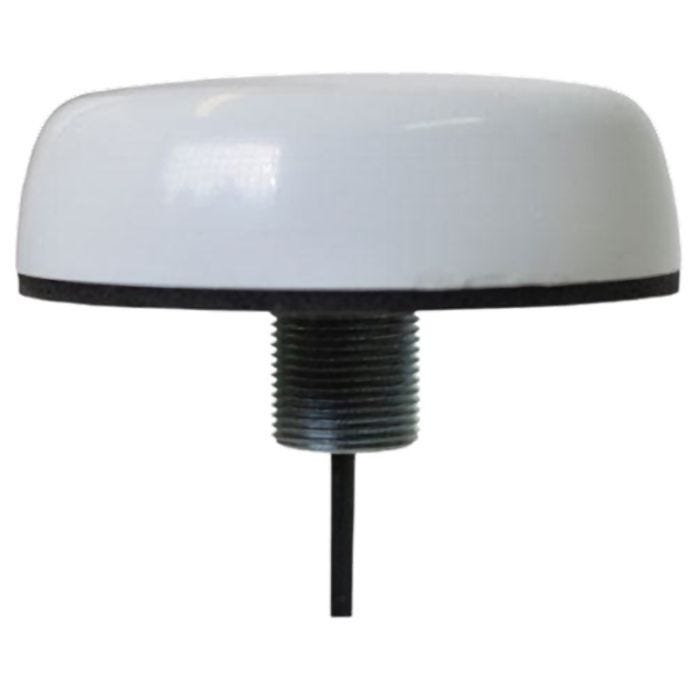

AMG 360° Omni-Directional Antenna
SKU#:
0967530
Part No:
AMGANT-G1-ODA5-4.5w
Features
- Compact size - 67mm (2.64") diameter & 21mm (0.83") height provides low profile installation
- -40°C to +80°C temperature maintains performance in extreme environmental conditions
- Surface mount design with integrated gasket and 16mm (5/8") threaded mounting point
- GNSS antenna supports all common satellite constellations including GPS, QZSS, Galileo, GLONASS & BeiDou
- 26dB antenna performance with 5dBi gain provides strong signal reception
About this product
360° Omni-Directional Antenna, 1x GNSS 5dBi Gain SMA-Type Male Connector, 4.5M (15ft) RG174 Cable, IP65, Surface Mount, White
Additional features
- Active powered antenna supporting 2.7 to 5 VDC with low current (10mA typical)
- Supports IP65 for reliable outdoor installation
- Designed in the USA & UK. Manufactured in the United Kingdom
- AMG Lifetime Support Warranty
More Information
| Stock |
Order on Request |
| Ethernet Transmission Options |
Accessories |
| Part Number |
AMGANT-G1-ODA5-4.5w |
| Brand |
AMG Systems |
| Category |
Peripherals, Ethernet Transmission |
