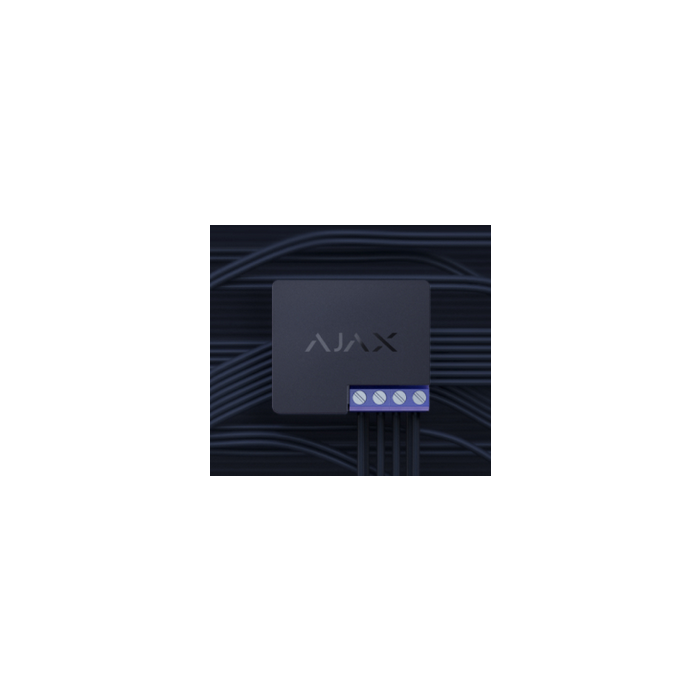

Ajax Dry Contact Relay to Control 12-24 V⎓ Power Supply Remotely

SKU#: 0938100

Part No: 38204.NC1

Order on Request

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

Features:

Classification: Radio channel relay unit
Device type: Wireless
Installation method: Into electric switchboard, junction box
Compatibility: Operates with all Ajax hubs and range extenders
Actuating element: Electromagnetic relay

Order on Request

About this product

Adfditional features

Relay service life: 200,000 switch-ons
Voltage protection: Max — 36.5 V⎓, min — 6.5 V⎓
Maximum load current: 5A at 24 V⎓, 13A at 230V~
Maximum current protection: No
Maximum temperature protection: > 65°C at the place of installation
Electric power meter function: No
Energy consumption parameter check: Voltage
Power supply: 7–24 V⎓ (DC only)
Operation modes: Pulse, Bistable
Contact state: Normally open, Normally closed
Adjustable pulse duration: 1–255 sec

Datasheets + Resources

Other Documents

More Information

More Information
Stock	Order on Request
Detector Accessories	Relay Module
Part Number	38204.NC1
Brand	AJAX
Category	Intruder, Detector Accessories
