Knight Grade 2, 6 Terminal Large Industrial Surface Contact with Tamper

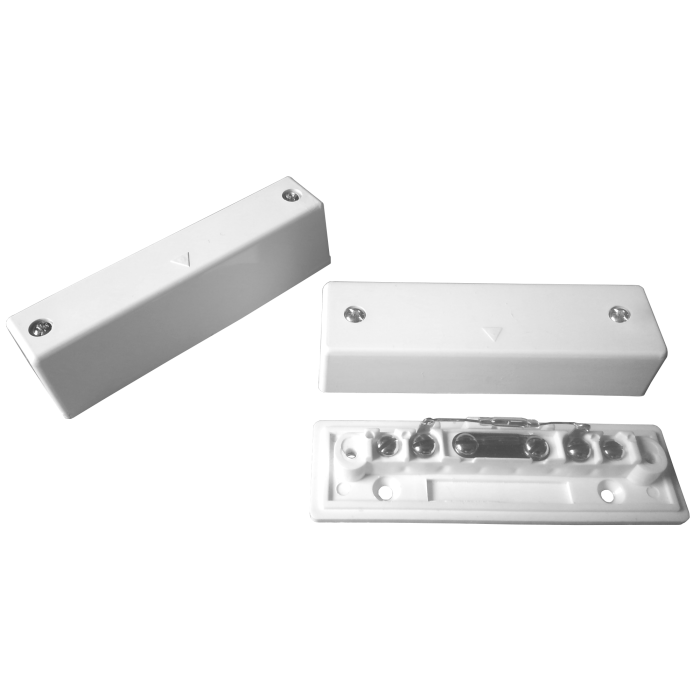

The D70 is a large, 6 terminal surface contact. 2 terminals for the switch, 2 for the tamper and 2 spare. Designed to be hard wearing, this contact is made with a HIPS (High Impact Polystyrene) casing and provides a relatively long 40mm operating gap. Contact dimensions: 86x25x20mm. Magnet dimensions: 86x19x24mm. Tamper protections provided by leaf mechanism to detect removal of the lid. Provided with the required fitting screws. Also available in brown - use part code D70B. Also available DPST (double reed) - Use part code D702. - 2x Spare terminals - Operating gap: ~40mm - Leaf tamper protection - Large housing - Supplied with fitting screws
