Knight 6 Terminal Double Reed Flush Contact (DPST)
SKU#:
0193160
Part No:
A90
Order on Request
Order on Request
About this product

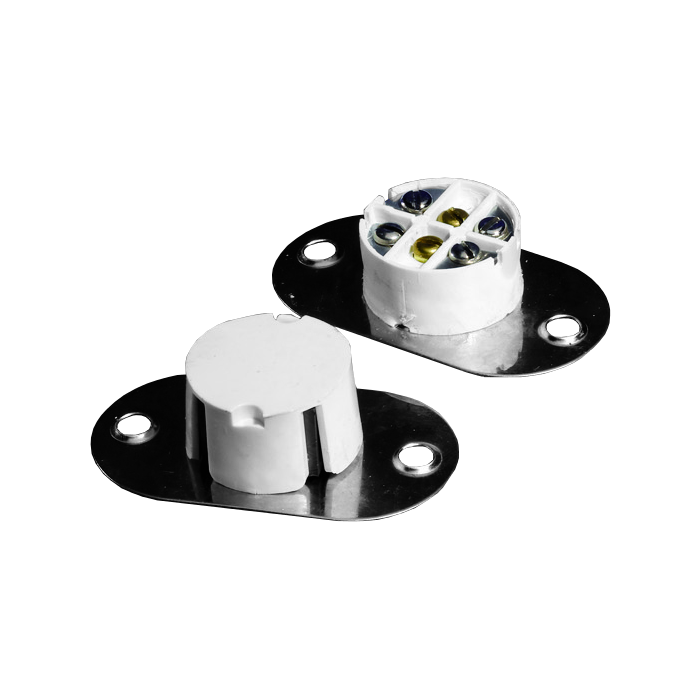

The A90 is a double reed flush contact. 6 terminal terminals are provided - 2 terminals for one switch, 2 terminals for the second switch and 2 spare brass terminals.
The contact will fit a 25mm diameter recess, with the oval stainless steel plate measuring 32x58mm.
The contact will operate DPST at a gap of 25mm-30mm.
A90 comes complete with fitting screws for immediate installation from the package.
This is a 6 terminal contact - 2 terminals for one switch, 2 terminals for the second switch and 2 spare brass terminals.
- 2x Spare brass terminals
- Generous operating gap: 25mm-30mm
- Fits 25mm diameter recess
- Stainless steel, oval plate
- DPST operation
- Supplied with fitting screws
| Stock | Order on Request |
|---|---|
| Detector Type | Flush Contact |
| Wired Or Wireless | Wired |
| Grade | Grade 1 |
| Part Number | A90 |
| Brand | Knight |
| Category | Intruder, Intruder Detectors |
