Features

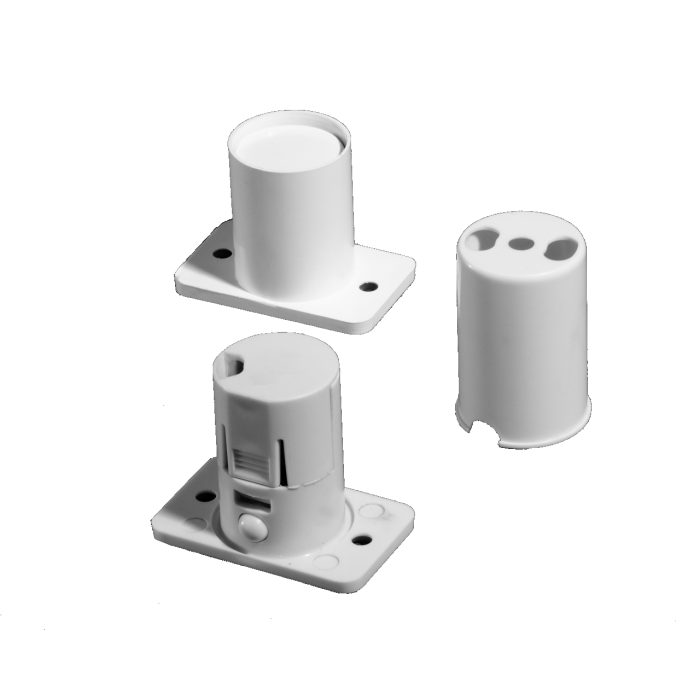

The A41MULTI is a 4 terminal white flush contact complete with selectable EOL/Alarm resistors. It will fit a standard 20mm diameter recess, expanding to 22mm if the optional contact sheath is used. The plate fits an area of 22x35mm.
EOL Resistors: 1k, 2k2, 4k1, 4k7, 5k6, 10k.
Alm Resistors: 1k, 2k2, 4k1, 4k7, 5k6, 6k8, 10k.
These resistors cover the majority of leading panel manufacturers including Honeywell, Texecom, HKC, Risco etc.
Tamper protection is provided by a spring loaded microswitch. This will detect removal from the fitted recess.
Fitting screws are provided with this contact for immediate installation from the package.
Operating gap is 14mm approx.
The contact can be wired without the integral resistors (Traditional / 4-Wire) if necessary.
A41MULTI is suitable for shared zone installation with 2+ contacts.
Also available in brown - use part code A41MULTIB.
| Stock | In Stock |
|---|---|
| Detector Accessories | Resistors |
| Part Number | A41MULTI |
| Brand | Knight |
| Category | Intruder, Detector Accessories |
