Knight Grade 3, 4 Terminal White Surface Contact with Resistors
SKU#:
0353660
Part No:
YEND74
In Stock
In Stock
About this product

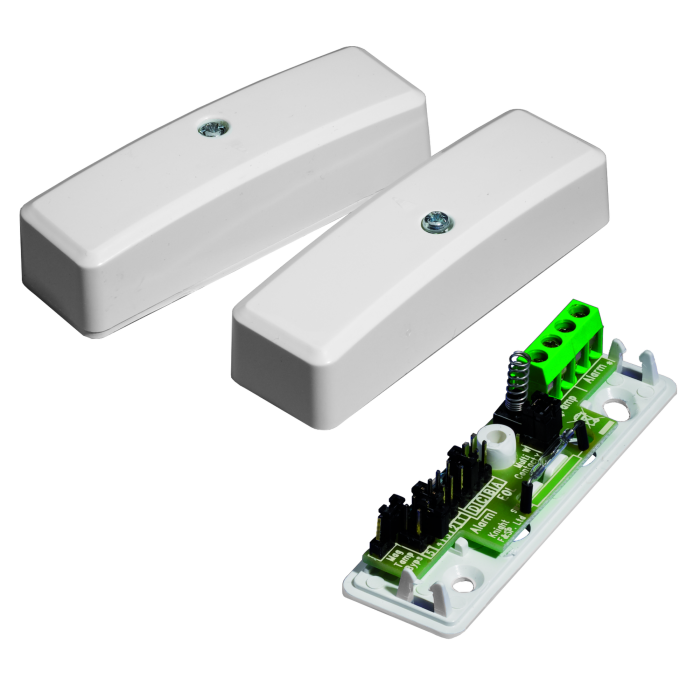

The YEND74 is a 4 terminal white surface contact complete with selectable EOL/Alarm resistors. Resistor selection is provided by shunt placement.
A sprung tactile microswitch provides tamper protection, detecting removal of the lid. Magnetic interference detection provides Grade 3 functionality.
This unit can be downgraded to Grade 2 via shunt placement.
EOL Resistors: 1k, 2k2, 4k1, 4k7, 5k6.
Alm Resistors: 1k, 2k2, 4k1, 4k7, 5k6, 6k8.
These resistors cover the majority of leading panel manufacturers including Honeywell, Texecom, HKC, Risco etc.
Both contact and magnet are 78x24x20mm with rounded edges for a smoother look.
The contact can be wired without the integral resistors (Traditional / 4-Wire) if necessary.
YEND74 is suitable for shared zone installation with 2+ contacts.
Along with fitting screws, this contact also comes with 2x 3mm spacer shims to assist with installations that are not entirely level. Additional shims can be purchased in a 5 pack - use part code SPA-LS.
YEND74 operates at a gap of approximately 30mm.
Also available in brown - use part code YEND74B.
Also available in Grade 2 - use part code D75MULTI.
- Operating gap: ~30mm
- Microswitch tamper protection
- Integral resistors (shunt selection)
- Shared zone ready
- PCB with wire clamping terminal blocks
- Supplied with fitting screws and shims
| Stock | In Stock |
|---|---|
| Detector Type | Surface Contact |
| Wired Or Wireless | Wired |
| Grade | Grade 3 |
| Part Number | YEND74 |
| Brand | Knight |
| Category | Intruder, Intruder Detectors |
