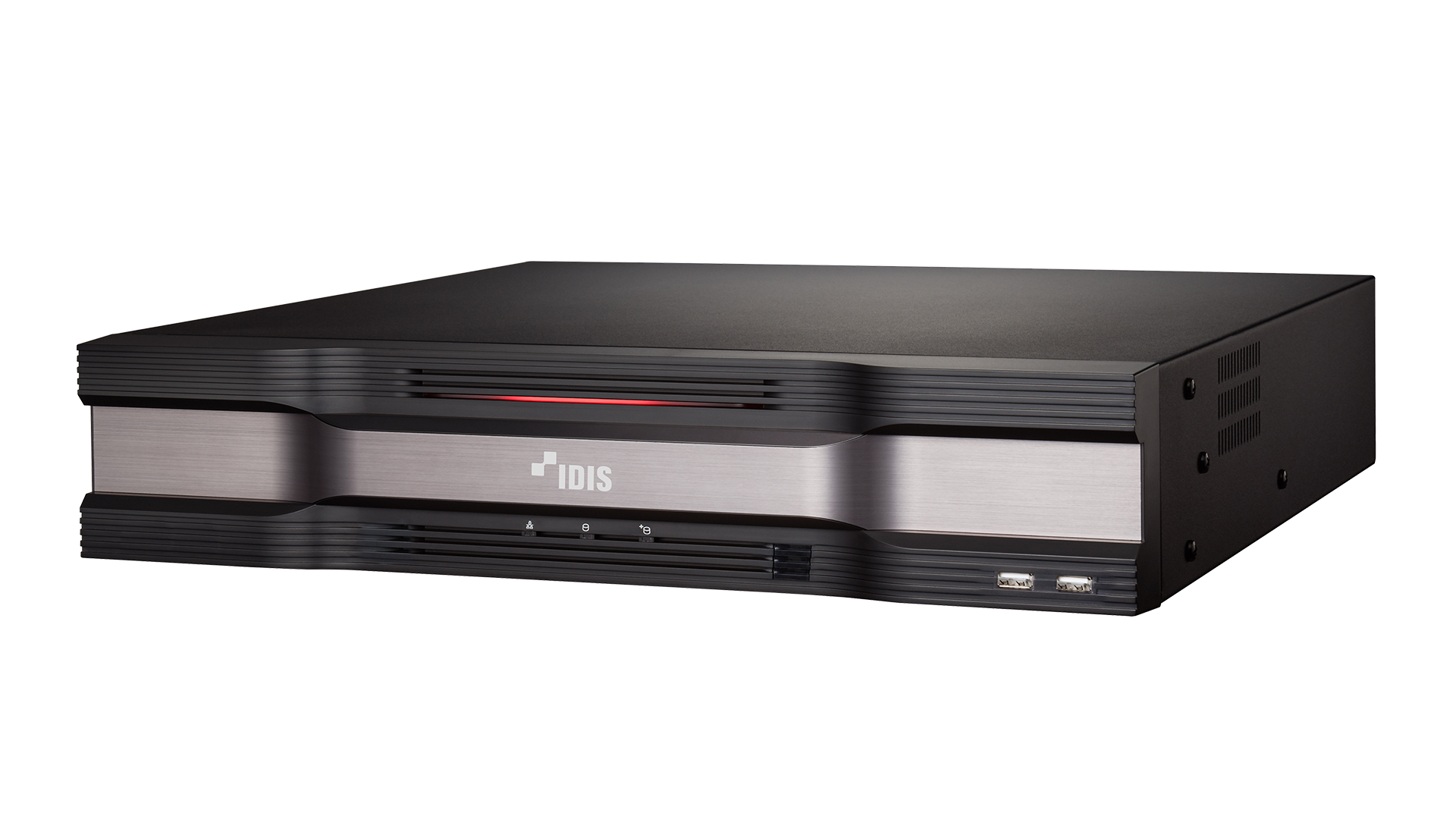

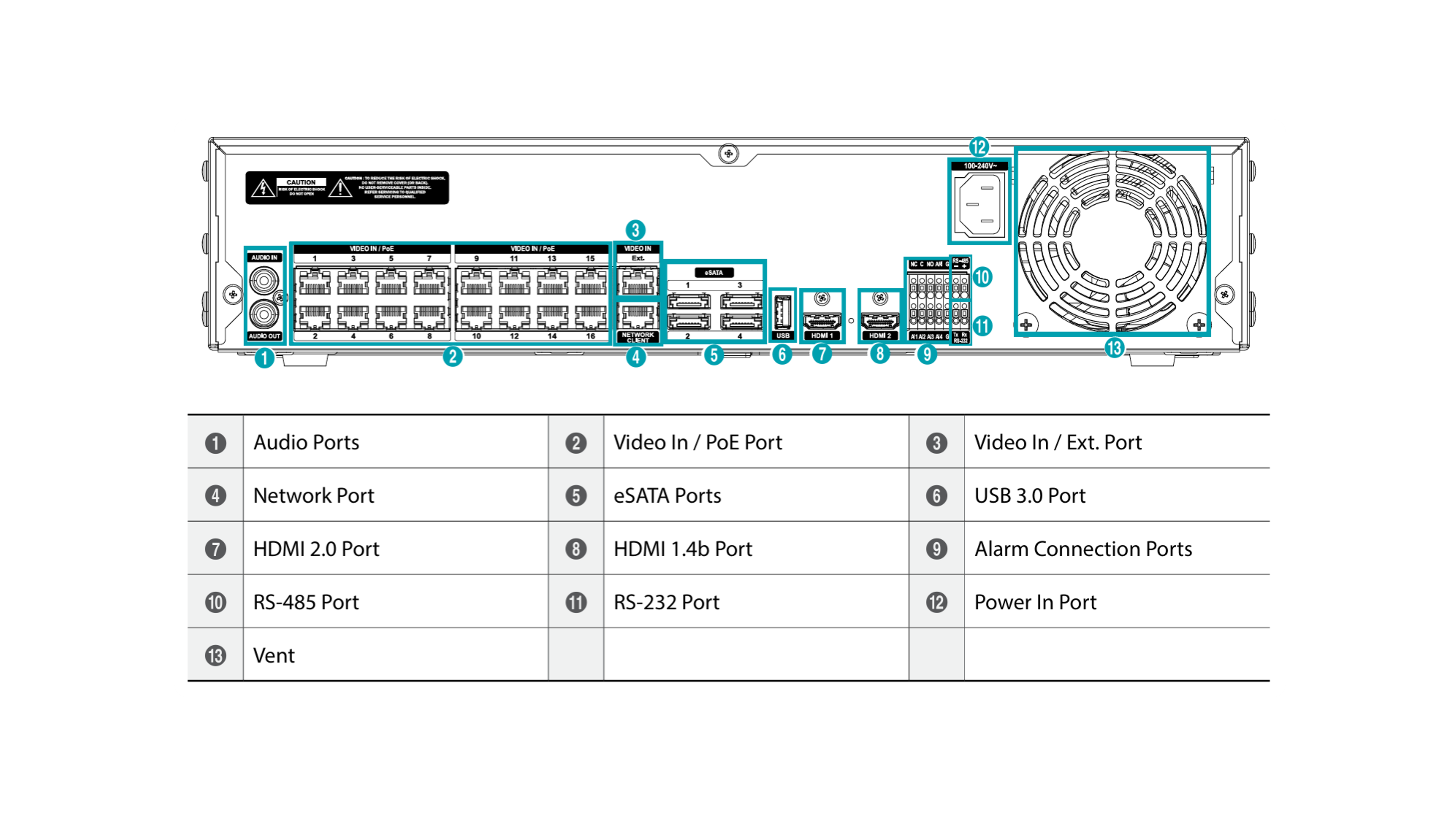

The IDIS DR-6516P-A is a 16 channel DirectIP 6500 Series network video recorder with 320 Mbps of incoming throughput and up to 480 ips UHD real-time recording. A built-in 16 port PoE switch (IEEE 802.3at Class 4, 200 W) powers cameras directly, and the recorder works with DirectIP, Axis, Panasonic and ONVIF cameras at recording resolutions of up to 12 MP. H.265 and H.264 compression are supported, with two HDMI outputs delivering live display at up to 480 ips and 3840 x 2160 resolution. Storage is provided by six internal SATA bays and four eSATA ports, with RAID 1 support for redundancy. Recording can be triggered by IDLA analytics events including object detection, intrusion, loitering, line crossing and face detection, as well as motion, tampering and alarm inputs. It supports one-click network configuration through the IDIS FEN service and is NDAA and TAA compliant.
