Name: Axis High-Performance White LED Illuminator (AC/DC)
Brand: Axis Communications
SKU: 11066340

Axis High-Performance White LED Illuminator (AC/DC)

Base SKU: 11066340|Part No: T90D25/01215-001

Key Features

1863lm 6000K white LED
Up to 110m illumination range
Interchangeable 10° to 80° lenses
12–24V AC/DC power input
IP66 and IK09 rated

Order on Request

Contact account manager to confirm lead time

Trade pricing available

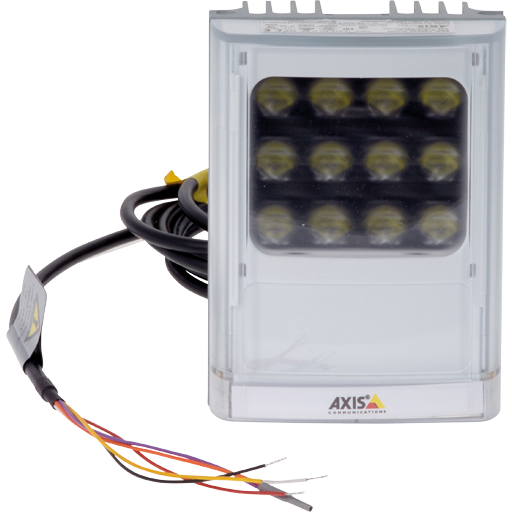

The AXIS T90D25 W-LED is an AC/DC-powered illuminator that uses the latest LED technology to deliver 1863 lumens of 6000K white light. It ships with a pre-mounted 10° lens giving up to 110 m of illumination, plus 35°, 60° and 80° diverging lenses that widen the beam down to a 25 m range, with an optional 120° lens also available. Power comes from a 12–24 V AC/DC supply, drawing a maximum of 24 W at full output and just 0.3 W in standby. Power level, photocell sensitivity, a telemetry link for remote activation and a timer can all be set with the integrated push buttons or the optional AXIS T90B Remote Control. The aluminium and polycarbonate casing is rated IP66 and IK09, operates from -50°C to 50°C and mounts on a wall, ceiling, pole or fixed box camera housing. It is compatible with all Axis network cameras.
