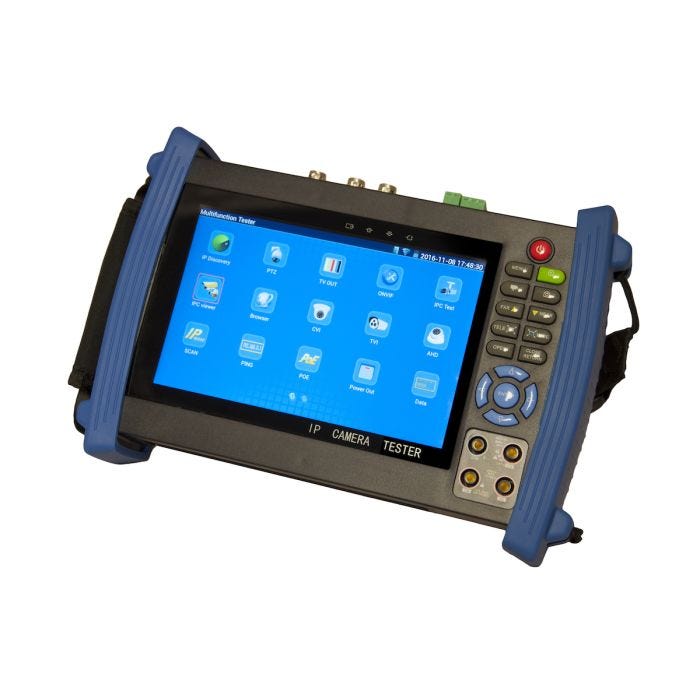

Vista DIAMOND4K Multi-Faceted CCTV Test Monitor with 4K Camera Support

SKU
0872170
Part No:
DIAMOND4K
In Stock

Key features of Vista DIAMOND4K  Security Camera Test Monitor:

  • 7” Retina touchscreen - Display resolution 1920x1200
  • Multi-format video input - IP, CVBS, TVI, CVI and AHD cameras
  • PTZ testing - Outputs to RS485 or HD analogue up the coax protocols to test
    most PTZ domes
  • Long battery life - Approx 16 hour battery life after an 8hour charge
  • UTP CAT5e tester - Supplied with UTP cable tester, identifies straight, crossed or broken CAT5e cables.
  • Cable tone tracer - For cable location\identification
  • Digital Multi-Meter - ideal testing, fault finding and commissioning in one handy robust unit
  • Power output - Provides 12VDC and PoE power output to power cameras locally for testing\commisioning
  • HDMI Input - Can be used as a set up screen for DVRs and NVRs, supports up to 1080p input

DIAMOND4K is the CCTV engineer's ultimate test tool. Crammed with functions developed to make the job of installing, commissioning and fault finding of CCTV systems easier, this ergonomically designed touch screen monitor is a must have for any installation engineer. As a basic test monitor, DIAMONDe will accept virtually any CCTV camera format including IP, CVBS, TVI, AHD and CVI video, up to a maximum resolution of 4K on both IP and High definition analogue formats. Both RS485 and UTC protocols for TVI, AHD & CVI PTZ cameras can be tested directly from the unit.

  • In-built VK2-Remote IP camera APP
  • ONVIF camera tester
  • IP address discovery tool
  • Manufacturer-specific camera viewers
  • RTSP viewer
  • Screen snapshot
  • HDMI Input
  • Multi-meter
  • Wifi-tester
Other Documents
pdf
(Size: 68 KB)
pdf
(Size: 647.9 KB)
Product Datasheet
pdf
(Size: 313.9 KB)
More Information
Stock In Stock
Part Number DIAMOND4K
Ancillary Options Test Equipment
Technology Analogue
Brand Vista
Category Peripherals, Ancillaries
