Hoyles Multi Function Programmable Time Clock and Timer

SKU#: 10652350
Part No: TMR100
Order on Request

Features

  • 12-24vdc powered
  • 2A rated double pole relay output
  • 7 programmable timers
  • 20 times per programme
  • Momentary action or latched relay output
  • Timed or switched override function
Order on Request

About this product

Additional features

  • Timed I/O function
  • Easy to read 16x2 LCD display
  • Convenient size, double gang plate
  • Accurate to within 2 minutes per year
  • Back up battery to maintain clock
  • User programme stored in EEPROM, no need to reprogram due to power loss
  • Secure code option to prevent tampering
  • Automatically adjusts for summer/winter time and leap years
  • UKCA and CE marked, ROHS compliant
  • Manufactured in the UK
  • Dimensions 147mm x 90mm x 47mm

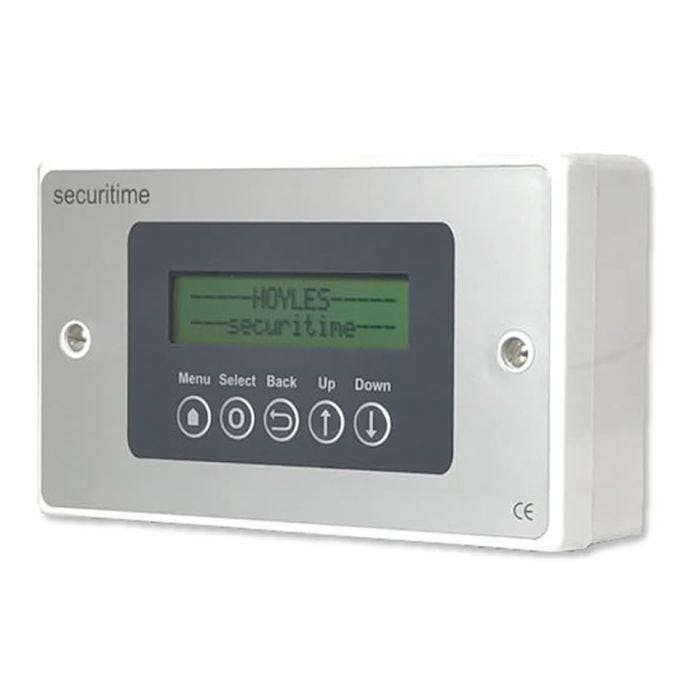

The Securitime is a versatile, secure programmable timer that switches a 12/24 vdc 2A clean contact output relay. With a simple to use interface and a clear LCD display it is ideal for use with access control or any other applications that have time sensitive elements. The timer has a back up battery so even if there is a power cut it will retain the time, date and all the programmed settings. For added reliability the timer automatically calculates the day of the week from the date, adjusts for leap years and automatically updates for summer and winter time.

Product Datasheet
pdf
(Size: 180.9 KB)
Other Documents
pdf
(Size: 233 KB)
pdf
(Size: 154.7 KB)
More Information
Stock Order on Request
Intruder Controller Accessories Input/Output Modules
Part Number TMR100
Brand Hoyles
Category Access, Controller Accessories
