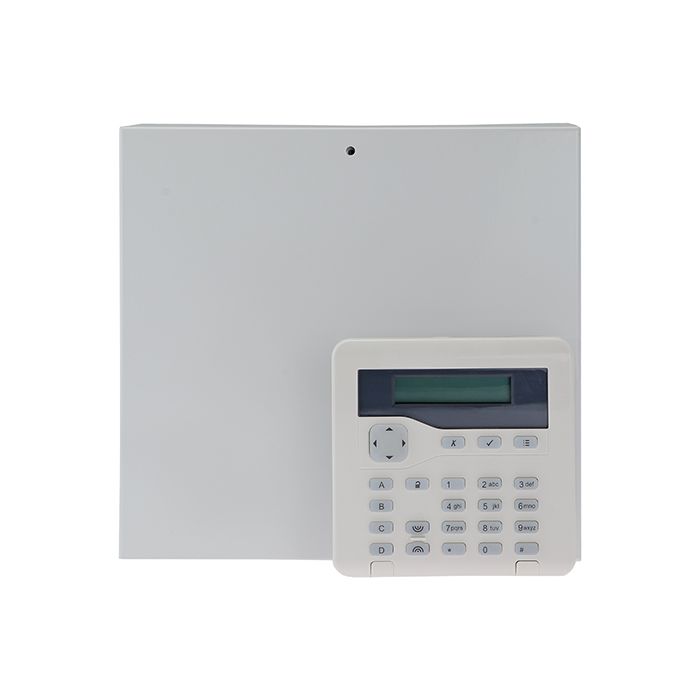

Eaton Hybrid Control Panel Expandable to 50 Zones
SKU#:
0586850
Part No:
i-onG2SM-KPZ
Order on Request
Order on Request
About this product
Ideal for smaller Grade 2 installations such as small to medium-sized buildings
- 10 FSL (Fully Supervised Loops) zones, expandable up to 50, providing a reliable and constant communication between panel and devices
- Feature packed to deliver you real benefits all i-on panels include a performance bus, decimal expansion and audible bus device locating
- The system can accommodate 50 users, each able to use a PIN, prox tag and key fob to set the system. The panel will also accept an additional hold up device (HUD) per user
- Includes one keypad with prox reader and additonal 2 zones
- Number of bus devices (Wired keypads or expanders): 20; Max areas (partitions): 20
- Compliant to EN50131 Grade 2, PD6662:2017
| Stock | Order on Request |
|---|---|
| Controller Type | Control Panel |
| Wired Or Wireless | Wired |
| Grade | Grade 2 |
| On Board Zones | Up To 10 |
| Part Number | i-onG2SM-KPZ |
| Brand | Eaton Electrical Products |
| Category | Intruder, Intruder Controllers |
